Model No.: EWN15000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

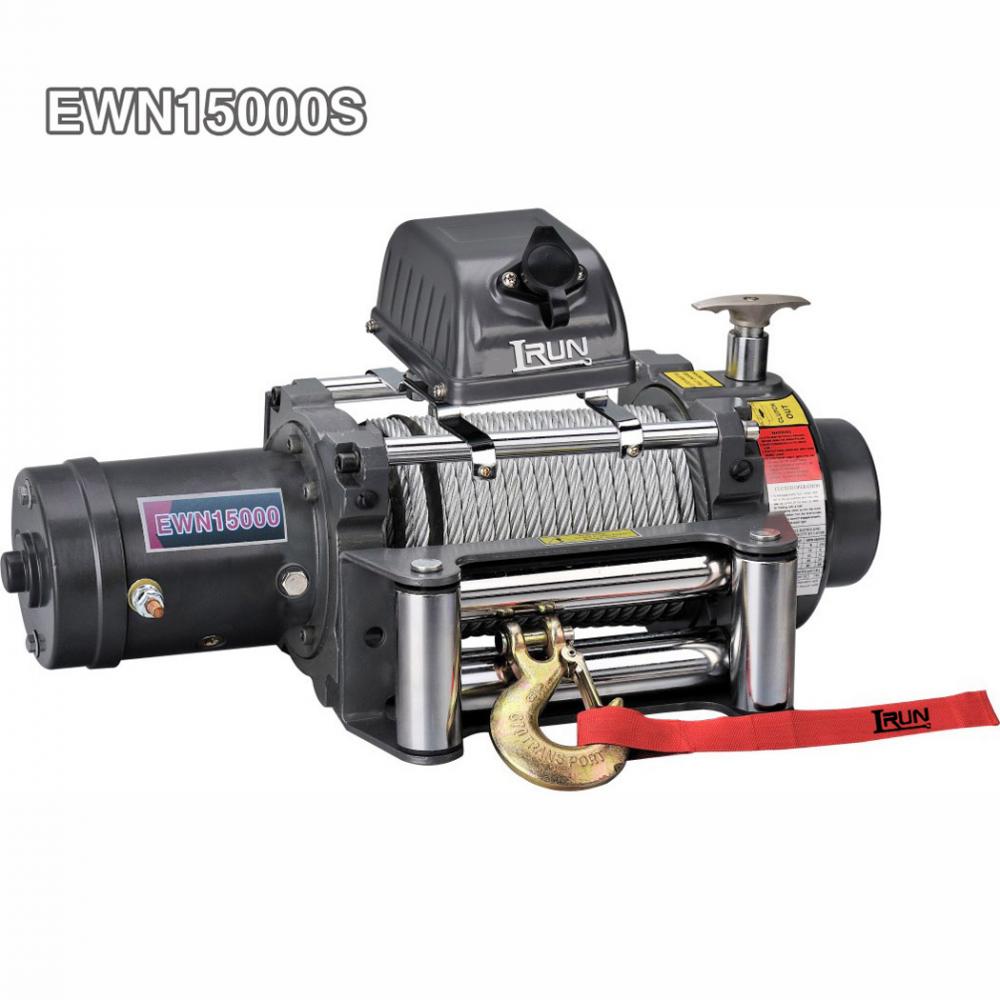

Heavy-Duty 15000LB Car Winch-Off-Road Recovery
In the realm of heavy - duty winches, our 15000 lbs Electric duty Car Winch ITEM NO. EWN15000S stands as a paragon of excellence. Tailored for recovery missions, it comes standard with a control box on the tie bar, a roller fairlead, and a set of wire rope, embodying the essence of a reliable Recovery Winch.
When compared to the raw power of Hydraulic Winches, the industrial - grade strength of Industrial Winches, the rugged prowess of Hydraulic 4wd Winches, and the adventurous spirit of Offroad Winches, the EWN15000S carves its own niche. Whether you're facing a challenging off - road terrain or an engineering task, this winch rises to the occasion. Its performance surpasses expectations, boasting a 30% increase in working life, line speed, and transmission efficiency compared to our regular winch series.
To further enhance its capabilities, our extensive range of Winch Accessories ensures that the EWN15000S can be customized to fit any situation. From the moment you encounter trouble to the successful recovery, our 15000 lbs Electric duty Car Winch, along with its versatile accessory options, offers the reliability and performance you need, making it the ideal choice for those who demand nothing but the best in the world of winches.
Features:
1.) Free spooling clutch
2.)Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
9.) SWR tensioner available
EWN15000
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.8 kW /3.8hp 24V:Input: 6.0 kW / 8.0hp;Output: 3.5 kW /4.7hp |
| Gear reduction ratio | 446:1 |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8. 5” (Ø88mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 15000(6804) | 19.7(6.0) | |
| 0 | 13.1(4.0) | 16.1(4.9) | 90 | 48 | 2 | 12000(5443) | 42.7(13.0) |
| 8000(3629) | 6.6(2.0) | 7.2(2.2) | 270 | 140 | 3 | 10100(4581) | 68.9(21.0) |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 320 | 180 | 4 | 8720(3955) | 83.7(25.5) |
| 12000(5443) | 4.6(1.4) | 5.9(1.8) | 380 | 200 | |||
| 15000(6804) | 4.3(1.3) | 5.6(1.7) | 450 | 250 | |||
| ITEM | EWN15000U | EWN15000S | ||
| Overall dimensions (L×W×H) | 23.3″×8.9″×10.3″(12V) 593mm×226mm×262mm(12V) | 23.3″×8.9″×12.4″(12V) 593mm×226mm×316mm(12V) | ||
| 22.7″×8.9″×10.3″(24V) 576mm×226mm×262mm(24V) | 22.7″×8.9″×12.4″(24V) 576mm×226mm×316mm(24V) | |||
| Net weight (Ibs) | 162.9 73.8 | 163.3 74.1 | ||
| (kgs) | ||||
Overall Dimensions 23.3″ x 8.9″ x 12.4″
(L x W x H) 593mm x 226mm x 316mm
Net Weight 74.1 KGS
