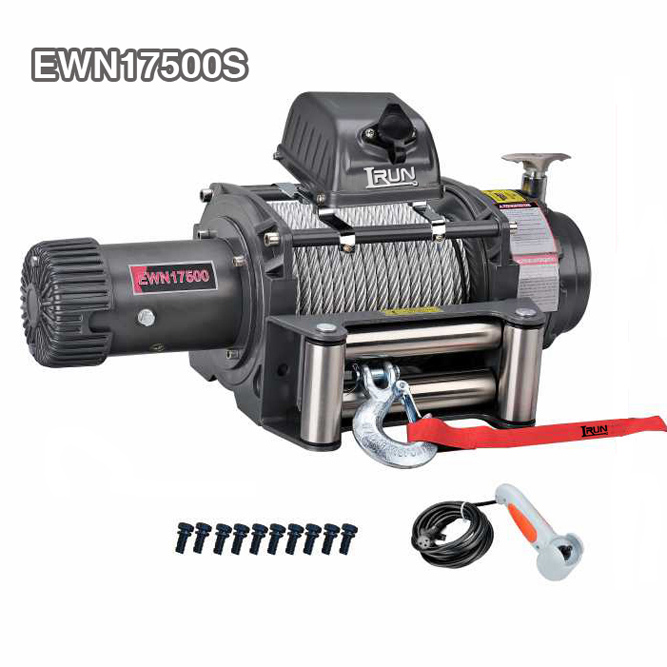

Heavy-Duty 17500LB Electric Truck Winch
Get Latest PricePayment Type: | L/C,T/T,D/P |
Incoterm: | CFR,FOB,CIF,EXW |
Transportation: | Ocean,Air |
Port: | SHANGHAI,NINGBO |
Payment Type: | L/C,T/T,D/P |
Incoterm: | CFR,FOB,CIF,EXW |
Transportation: | Ocean,Air |
Port: | SHANGHAI,NINGBO |
Model No.: EWN17500S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
Selling Units | : | Piece/Pieces |
Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Features:
2. Free free spooling clutch
3. Automatic screw cone braking action
4. Series wound motor.
5. Runva patent tree stage planetary gear reducer.
6. Sepcially designed shape for convenience of installation and good looking.
7. Remote control through control box and switch
8. Wireless remote control available
9. DC 12V or DC 24V Power drive optional
10. Heavy duty design
11. Standard 4-way roller fairlead
12. Clevis pinned/latched hook
Rated line pull 17500 lbs(7938 kgs)
Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp
24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp
Gear reduction ratio 430:1
Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)
Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)
Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12
Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)
Net weight Ibs (kgs) 148.4(67.3)
EWN17500
SPECIFICATION | |
Rated line pull | 17500 lbs (7938 kgs) |
Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp 24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp |
Gear reduction ratio | 430:1 |
Cable (Dia.× L) | Ø15/32 “×87 ‘ (Ø12mm×26.5m) |
Drum size (Dia.× L) | Ø3.5 “×8. 6” (Ø89mm×219mm) |
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 10 “×6.5 ” (254mm×165.1mm) 8-M12 |
Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
12V DC | 24V DC | 12V DC | 24V DC | 1 | 17500(7938) | 18.0(6.0) | |
0 | 19.7(6.0) | 13.8(4.4) | 100 | 40 | 2 | 14140(6414) | 40.7(13.0) |
6000(2722) | 7.2(2.2) | 6.9(2.1) | 220 | 100 | 3 | 11862(5381) | 65.9(21.0) |
10000(4536) | 5.6(1.7) | 5.9(1.8) | 320 | 140 | 4 | 10217(4634) | 86.9(26.5) |
12500(5670) | 4.9(1.5) | 5.2(1.6) | 350 | 180 | |||
14000(6350) | 4.6(1.4) | 4.6(1.4) | 380 | 200 | |||
17500(7938) | 3.0(0.9) | 3.9(1.2) | 450 | 250 |
ITEM | EWN17500U | EWN17500S | |
Overall dimensions | 24.4″×8.4″×11.4″ 620mm×214mm×290mm | 24.4″×8.4″×12.6″ 620mm×214mm×321mm | |
(L×W×H) | |||
Net weight (Ibs) | 147.7 67.0 | 148.4 67.3 | |
(kgs) |
Overall Dimensions 24.4″ x 8.4″ x 12.6″
(L x W x H) 620mm x 214mm x 321mm
Net Weight 67.3 KGS
