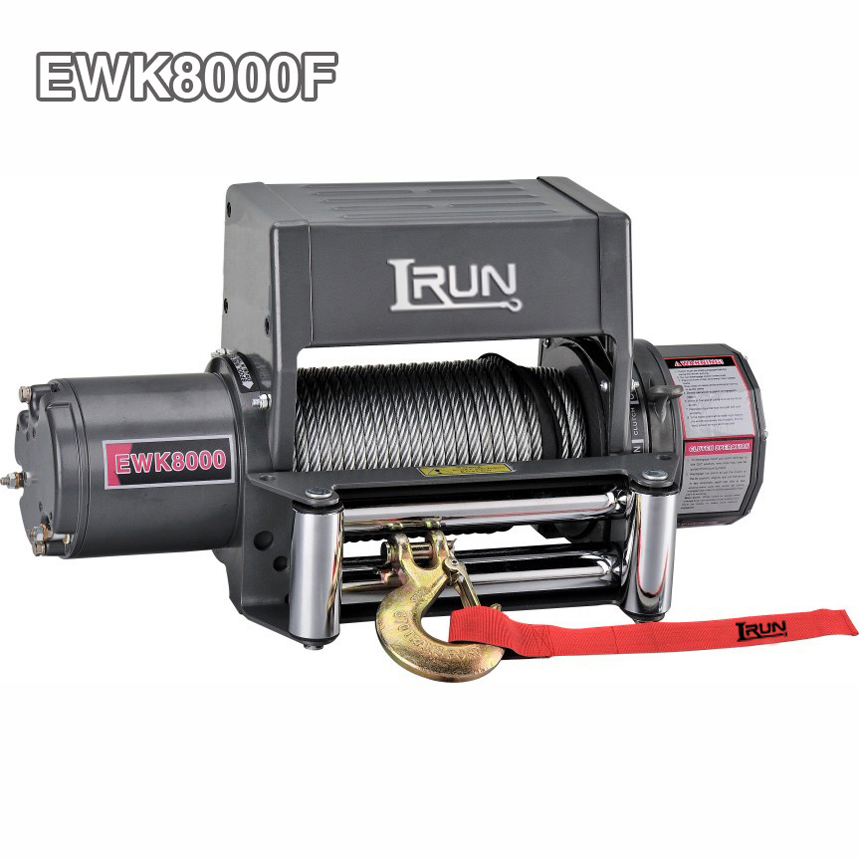

Model No.: EWK8000F
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the professional matrix of winch technology, Hydraulic Winches demonstrates heavy-duty capabilities with Hydraulic power, Industrial Winches builds the foundation of the production line with industrial-grade standards, and Hydraulic 4wd Winches injects terrain-conquering power into four-wheel drive off-roading. Offroad Winches safeguards the adventure journey with extreme environmental adaptability - and our EWK8000F 8000-pound electric vehicle-mounted winch (model EWK8000F), as the benchmark model of the first-generation winch products, is presenting a golden combination of "permanent magnet power + classic design" Redefine the cost-performance benchmark of Recovery Winches.
The technical core of permanent magnet drive
The EWK8000F, equipped with a permanent magnet synchronous motor and a vertical control box, achieves a breakthrough in performance through industrial-grade precision craftsmanship
8,000 pounds of precise traction force: Compatible with mainstream models such as SUVs and pickup trucks. When getting out of mud, the rope retraction speed reaches 3.8m/min, which is 15% more efficient than traditional series-excited motor Winches. Its performance is close to that of professional Off-Road Winches under normal working conditions.
When the complexity of professional-grade Hydraulic winches and the insufficient reliability of entry-level products have become industry pain points, the EWK8000F, with its innovative integration of "classic technology and modern craftsmanship", makes the 8,000-pound rescue capacity an accessible safety guarantee.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp 24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||
| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions | 21.9″×7.1″×9.6″ 555mm×180mm×243mm | 21.2″×7.1″×11.7″ 538mm×180mm×297mm | 21.2″×7.1″×10.6″ 538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 63.5 28.8 | 64.2 29.1 | 68.1 31.0 |
| (kgs) |
