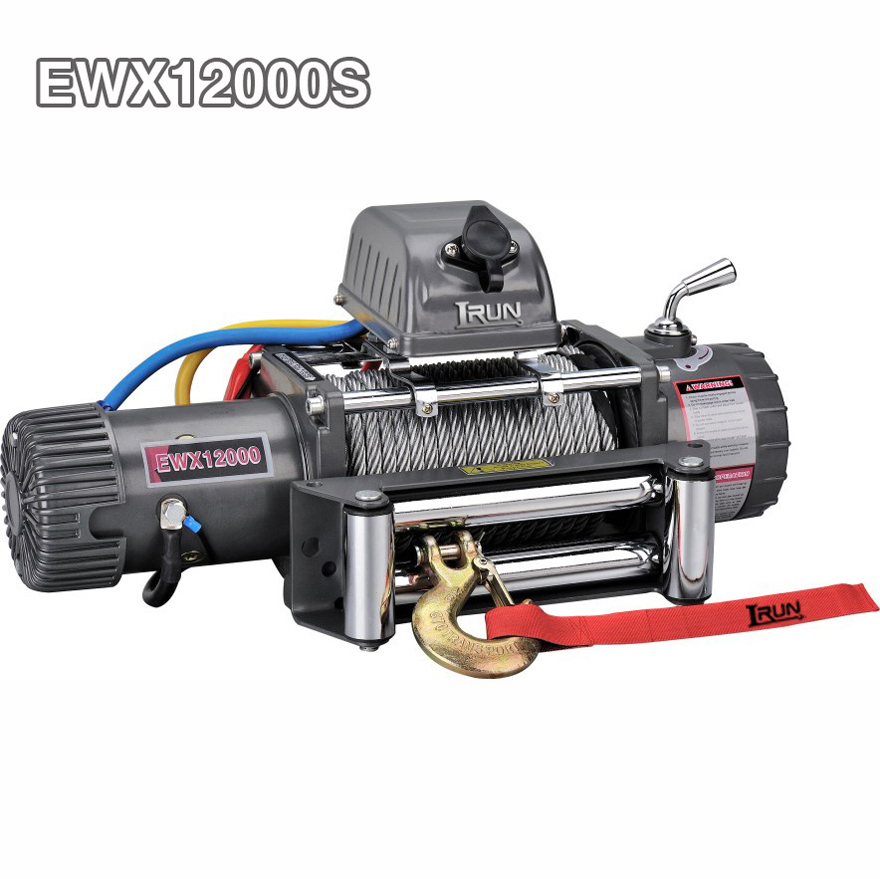

Model No.: EWX12000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the professional field of winch technology, Hydraulic Winches controls heavy-duty operations with Hydraulic power, Industrial Winches supports engineering scenarios with industrial-grade standards, and Hydraulic 4wd Winches provides strong traction for four-wheel drive off-roading. Our EWX12000S 12,000-pound electric vehicle-mounted winch, as the culmination of Recovery Winches and Offroad Winches, redefines the efficiency benchmark for rescue and off-road with its outstanding performance.
The EWX12000S is equipped with a control box integrated into the winch pull rod, which is convenient to operate and space-saving. With a powerful pulling force of 12,000 pounds, it is sufficient to handle complex situations such as vehicles being stuck in mud and sand. Different from the complex Hydraulic system of Hydraulic Winches, its electric drive design not only reduces maintenance costs but also achieves a faster response. Compared with the heavy structure of the Industrial Winches, the compact body is perfectly adapted to the needs of vehicles. The patented three-stage planetary gear reducer endows it with a transmission efficiency of up to 95%. The automatic braking system ensures operation safety. Its performance is on par with that of professional-grade Hydraulic 4Wd Winches.
The product is standard-equipped with basic Winch Accessories such as high-strength galvanized steel cables and wear-resistant roller rope guides. It also supports upgrades to accessories like wireless remote control modules and synthetic fiber cables, which can meet diverse needs in different scenarios. Whether it's emergency self-rescue during extreme off-road adventures or professional operations in road rescue, the EWX12000S can become a reliable and trustworthy partner with its stable and efficient performance.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
EWX12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443 kgs) |
| Motor: Series Wound | 12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp |
| 24V:Input: 5.3 kW / 7.1hp; Output: 3.3 kW /4.4hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 16.1 (4.9) | |
| 0(0) | 22.3(6.8) | 23.0(7.0) | 100 | 60 | 2 | 9563(4338) | 36.4 (11.1) |
| 4000(1814) | 13.1(4.0) | 13.8(4.2) | 220 | 130 | 3 | 7948(3605) | 60.0(18.3) |
| 8000(3629) | 9.8(3.0) | 10.8(3.3) | 330 | 170 | 4 | 6800(3084) | 83.7(25.5) |
| 12000(5443) | 5.8(1.8) | 7.5(2.3) | 450 | 220 | |||
| ITEM | EWX12000U | EWX12000S | EWX12000F |
| Overall dimensions | 22.8″×6.3″×10.0″ | 22.8″×6.3″×11.1″ | 23.2″×6.5″9.9″ |
| (L×W×H) | 579mm×160mm×254mm | 579mm×160mm×283mm | 579mm×160mm×283mm |
| Net weight (Ibs) | 92.6 | 93.3 | 96.6 |
| (kgs) | 42.0 | 42.3 | 43.8 |
Overall Dimensions：22.8″ x 6.3″ x 10.7″
(L x W x H) 579mm x 160mm x 272mm
Net Weight：42.3 KGS
