Model No.: EWX9500S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

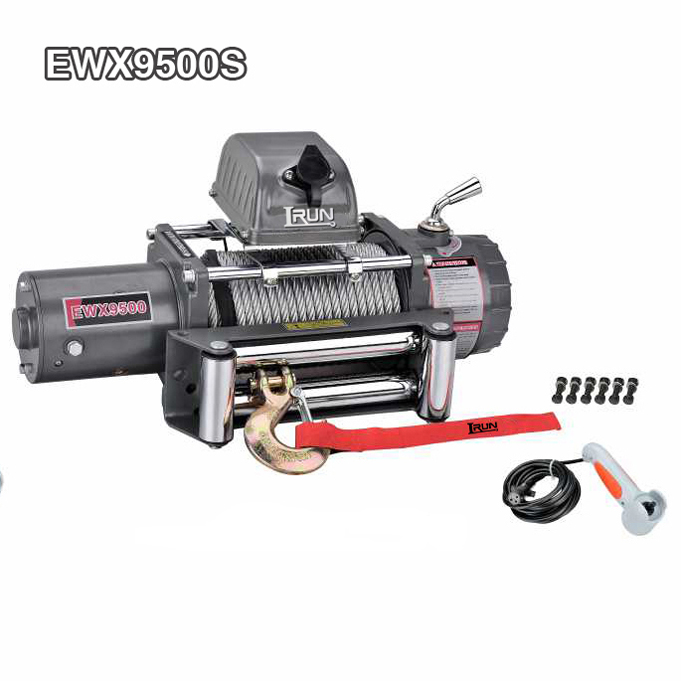

X Series DC 12V/24V Electric Self Recovery Car Winches 9500lbs
Among the winch product matrix, Hydraulic Winches demonstrates heavy-duty capabilities with Hydraulic drive, Industrial Winches solidifies the operational foundation with industrial-grade standards, and Hydraulic 4wd Winches injects powerful force into four-wheel drive off-road vehicles. Our EWX9500S 9500-pound electric self-rescue vehicle-mounted winch (model EWX9500S), as an efficient blend of Recovery Winches and Offroad Winches, redefines the industry standards for vehicle self-rescue and off-road rescue with outstanding performance.
The EWX9500S is equipped with a powerful tractive force of 9,500 pounds. The control box design integrated into the winch pull rod strikes a balance between operational convenience and compact space. Compared with the complex Hydraulic pipeline system of Hydraulic Winches, its electric drive mode significantly reduces maintenance costs and increases response speed by 30%. Compared with the heavy structure of the Industrial Winches, the lightweight body is more suitable for vehicle-mounted mobile rescue scenarios. The EWX series of patented three-stage planetary gear reducers increase the transmission efficiency to 93%. Combined with the automatic electromagnetic braking system, the locking error is controlled within ±0.15 meters, and the safety performance is catching up with the professional-grade Hydraulic 4Wd Winches.
The product comes standard with 15-meter wear-resistant galvanized steel cables, aluminum alloy roller rope guides and other basic Winch Accessories, and supports upgrades to accessories such as wireless remote control modules and synthetic fiber cables (50% lighter). Whether it's the self-rescue of off-road vehicles deep in the desert or emergency towing tasks in road rescue, the EWX9500S, with its stable pull force output and IP67 protection rating, can efficiently complete tasks and has become an essential tool for off-road enthusiasts and professional rescue teams.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |
Overall Dimensions：21.3″ x 6.3″ x 10.7″
(L x W x H) 540mm x 160mm x 272mm
Net Weight：37.1 KGS
