Model No.: EWX9500F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

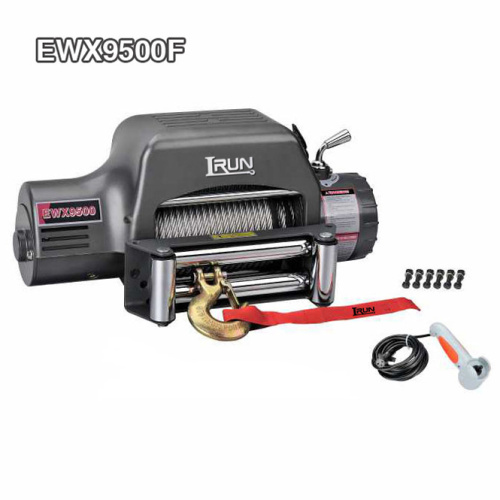

In the field of winches, The powerful engine of Hydraulic Winches, the stability and reliability of Industrial Winches, the all-terrain adaptability of Hydraulic 4wd Winches, the fearless challenge of Off-Road Winches, and the mission accomplishment of Recovery Winches With the comprehensive assistance of Winch Accessories, a solid system for efficient operation and security guarantee is jointly built. Item no. EWX9500F, as the electric rescue Winch of 9500 lbs, has become a shining star in the Recovery Winch EWX series with its unique design and outstanding performance.
The EWX9500F is equipped with a standing control box that is easy and intuitive to operate. Whether in an emergency at a field rescue site or in a complex working environment, it enables users to control it quickly and accurately. It perfectly inherits the outstanding features of the Recovery Winch EWX series, combining efficient operation, stable traction and compact design. It demonstrates extraordinary capabilities in every operation. Especially its independently patented design of the three-stage planetary gear reducer has greatly enhanced the transmission efficiency of the winch, ensuring safe and reliable operation even under high-intensity use. This exquisite craftsmanship makes it stand out among numerous winch products.
In Industrial Settings, the EWX9500F can rival Industrial Winches and easily handle the towing and hoisting tasks of heavy equipment. When off-road enthusiasts drive their vehicles through the wilderness, it, like Hydraulic 4Wd Winches and Offroad Winches, with its powerful grip and adaptability, helps the vehicles climb steep slopes and cross swamps. In the rescue operation, as a professional Recovery Winches, with an extremely strong pulling force of 9,500 lbs, it can quickly rescue the trapped vehicle from the dangerous situation. Meanwhile, the rich and comprehensive Winch Accessories work closely with the EWX9500F. From high-strength traction ropes to smart remote controls, every accessory has undergone strict testing, providing all-round protection for the efficient operation of the winch and the safety of the user. Choosing the EWX9500F means choosing a professional, reliable and efficient winch solution, opening a new chapter of safe operation and smooth off-road driving.
Features:
1. Full steel reducer gear
2. patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |
Overall Dimensions：21.3″ x 6.5″ x 9.9″
(L x W x H) 540mm x 166mm x 251mm
Net Weight：39.2 KGS
