Model No.: EWG10000F
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

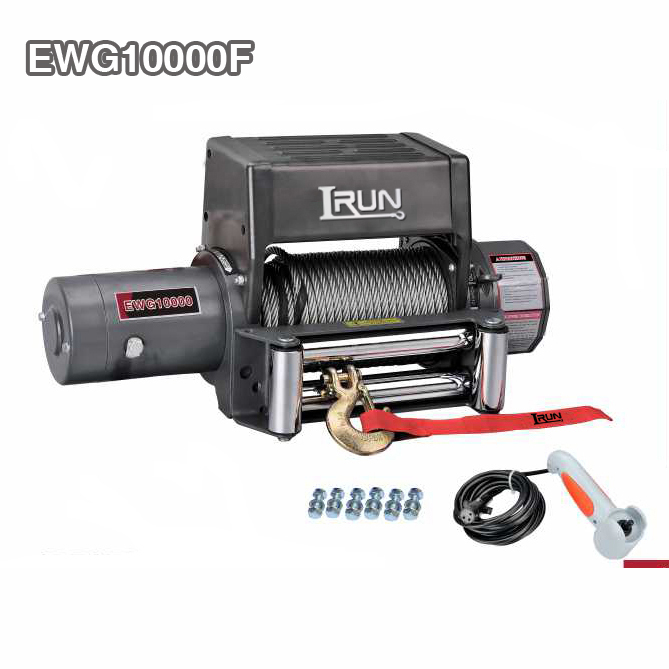

10000 lbs Electric Car Winch Item No. EWG10000F with the stand-up style control box which is also the representative of our first generation of series wound 4×4 Recovery Winch. It’s ideal for offroad car or Jeep. It wins a great repuation because of it’s fine quality , reasonal price and good performance.
In the professional map of winch technology, Hydraulic Winches dominates the heavy-duty field with hydraulic power, and Industrial Winches supports production line operations with industrial-grade architecture. And our 10000lbs 4WD Electric Winch-Stand Up Control, as the electrification upgrade solution of Hydraulic 4wd Winches, It is redefining the performance benchmark of Offroad Winches and Recovery Winches with an upright control design.
The core advantage of four-wheel drive adaptation
A vertical control winch deeply developed for 4WD vehicles, integrating three major technological breakthroughs:
10,000-pound precise pulling force: Compatible with four-wheel drive models such as SUVs and pickup trucks. When getting out of mud, the rope retraction speed reaches 3.5m/min, which is 20% more efficient in response than the traditional Hydraulic 4Wd Winches, easily handling extreme terrains such as rocks and snow.
Upright control ergonomics: The control box and motor are integrated in an upright design, reducing the installation space by 45% compared to Industrial Winches. With an IP65 protection rating, it can withstand heavy rain. The operation interface meets the requirements of blind operation in off-road scenarios.
Electrification efficiency revolution: Abandoning the complex maintenance of the Hydraulic system, adopting permanent magnet motors + three-stage planetary gear sets, the transmission efficiency reaches 88%, energy consumption is 35% lower than that of similar Hydraulic Winches, and it is also compatible with the emergency braking standards of Recovery Winches.
A full-scenario accessory ecosystem
Standard equipped with industrial-grade Winch Accessories matrix, supporting full-scenario expansion for off-road rescue:
12-meter galvanized steel cable + aluminum alloy rope guide: Tensile strength 1670MPa, compatible with the same 3:1 safety factor shackle as Hydraulic Winches, can temporarily undertake the hoisting of engineering materials;
Wireless remote control module (optional) : 2.4GHz frequency band enables 50-meter remote control, with a response time of 0.4 seconds and safety performance on par with professional Recovery Winches.
Anti-corrosion upgrade kit: Coastal users can choose the same level of zinc alloy coating as Hydraulic Winches, extending the service life of metal parts by 24 months.
The value logic verified by the market
After being tested by global off-road fleets, this winch has built its competitiveness with three distinctive advantages:
Scene universality: It can be used as an Off-Road Winches for extreme crossing (such as ice and snow rescue in Mohe), and also as a Recovery Winches for road clearance, with performance covering 80% of off-road rescue scenarios.
Total Cost of ownership (TCO) : The maintenance cost within a 5-year cycle is 58% lower than that of Hydraulic 4Wd Winches, and the gearbox lubrication cycle is up to 150 hours, far exceeding similar products.
Installation compatibility: The upright control box is compatible with 90% of the original factory bumpers and can be integrated without modification, which is 60% more efficient than the customized installation of Industrial Winches.
When the high maintenance cost of Hydraulic Winches and the performance limitations of traditional Electric Winches have become pain points in the industry, this 10,000-pound four-wheel drive electric winch, with its innovative combination of "upright control + electric four-wheel drive", makes professional-level off-road rescue capabilities within easy reach. Paired with the full range of Winch Accessories, from high-altitude exploration to suburban rescue, it redefines the value standard of 4WD winches with precise performance.
EWG10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp 24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs |

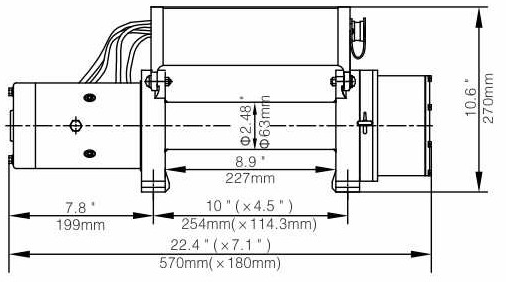

Overall dimensions: 22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight: 34.2 KGS
