Model No.: EWX8000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

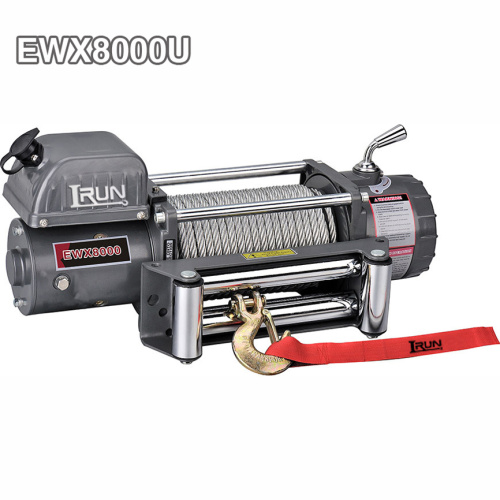

The EWX8000U, an 8,000-pound electric winch specifically designed for trucks, Jeeps and SUVs, is an ideal choice for demanding scenarios with its outstanding performance. It innovatively integrates the control box into the winch motor. The compact design shows ingenuity and is in line with our products such as Hydraulic Winches and Industrial Winches, continuing the ultimate pursuit of quality and efficiency.
As an important member of the Jeep Winch EWX series, the EWX8000U perfectly interprets the core advantages of this series, namely "efficiency, stability and compactness". The self-patented three-stage planetary gear reducer it is equipped with endows the winch with ultra-high transmission efficiency and reliable safety performance. This technical advantage complements the strong adaptability demonstrated by Hydraulic 4wd Winches and Offroad Winches in complex terrains, jointly providing a solid guarantee for off-road scenarios.
Whether used in conjunction with Recovery Winches for emergency rescue or as an independent equipment to assist in off-road adventures, the EWX8000U can stand out with its stable pulling force performance. Paired with our rich Winch Accessories, it can better adapt to various vehicle models and usage requirements, echoing the all-round performance of Industrial Winches in the industrial field and highlighting our profound technical accumulation in different winch categories.
From the powerful engine of Hydraulic Winches to the flexible response of Offroad Winches, from the durability and reliability of Industrial Winches to the precise and efficient EWX8000U of today, every product embodies our commitment to quality. Provide diversified winch solutions for global users.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX8000U
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor:Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |
Overall Dimensions：21.3″ x 6.3″ x 10.0″
(L x W x H) 540mm x 160mm x 254mm
Net Weight：32.6 KGS
