Model No.: EWX8000F
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

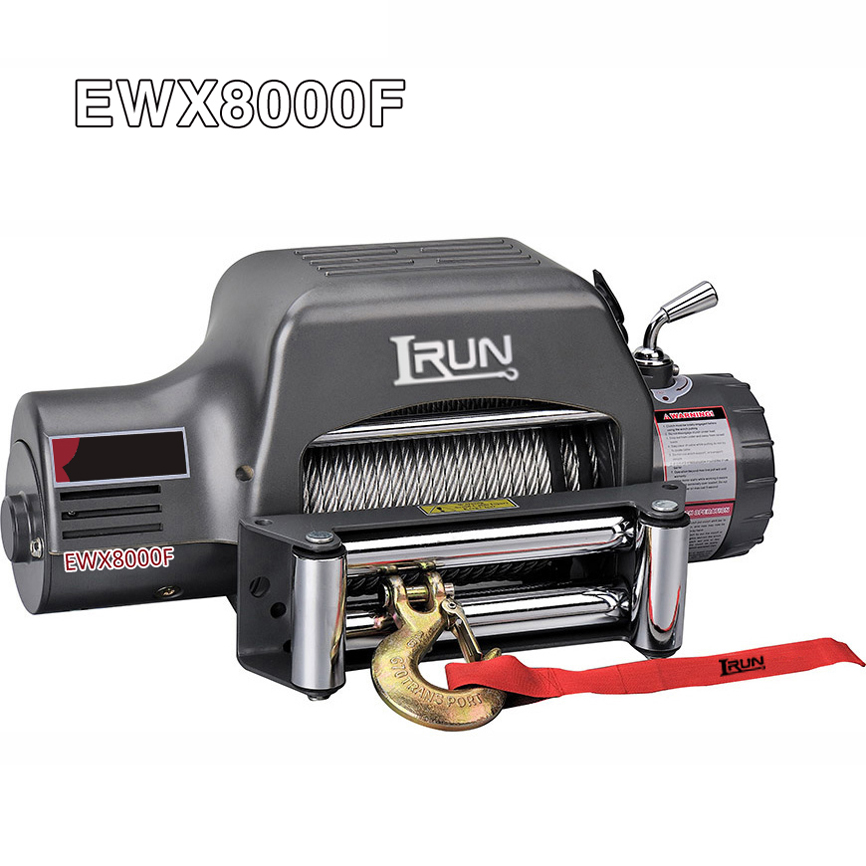

Dominate tough terrain with the EWX8000F—an 8000 lbs electric Offroad Winch built for relentless recovery missions. Engineered with a powerful series-wound motor and our patented three-stage planetary gear reducer, it delivers extreme transmission efficiency and reliable safety under heavy loads.
Stand-Up Control Box – Easy access and operation in demanding conditions
Stable Pulling & Compact Design – Perfect efficiency in tight offroad spaces
Self-Recovery & Vehicle Rescue – Trusted by professionals as a top-tier Recovery Winch
Versatile Performance: While Hydraulic Winches and Hydraulic 4wd Winches excel in industrial settings, the EWX8000F stands out for offroad agility. Whether you're tackling mud, rocks, or steep inclines, this Offroad Winch outperforms standard Industrial Winches with its optimized power-to-weight ratio.
Upgrade Your Setup: Pair it with premium Winch Accessories (synthetic ropes, shackles, or fairleads) for unbeatable recovery readiness.
Proven Reliability – Loved by offroaders for its durability, smooth operation, and brute strength. The EWX8000F isn’t just a winch—it’s your ultimate recovery partner.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |

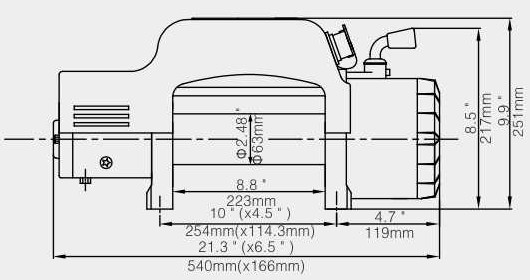

Overall Dimensions：21.3″ x 6.5″ x 9.9″
(L x W x H) 540mm x 166mm x 251mm
Net weight：37.2 KGS
