Model No.: EWK8000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

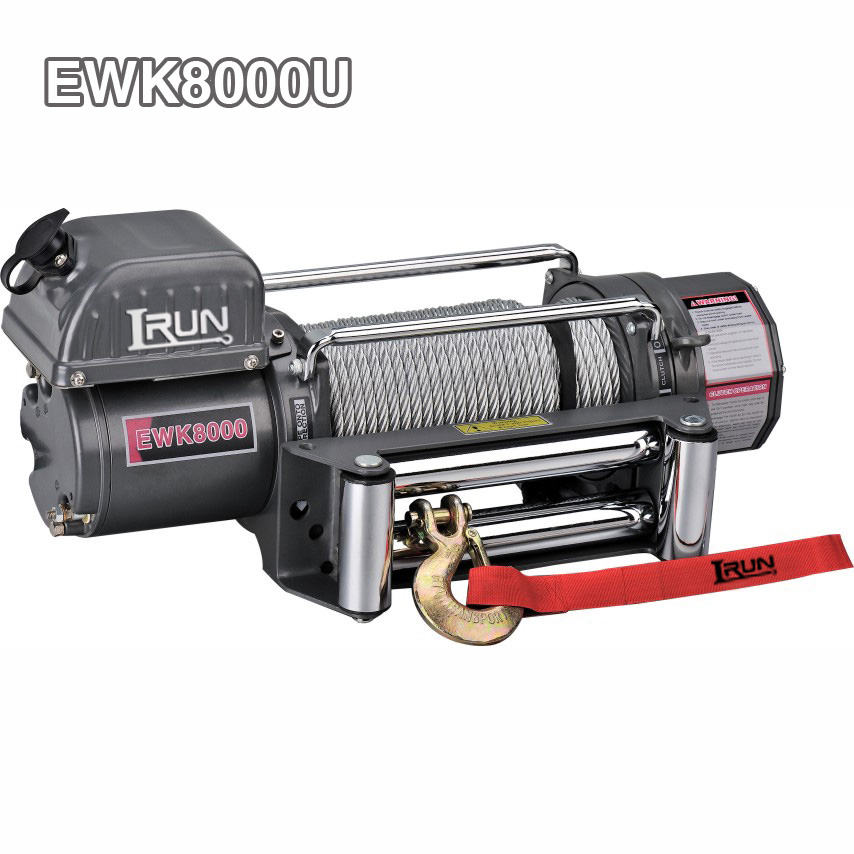

8000 lbs Electric Car Winch Item No. EWK8000U is our first generation winch product.It still has a popular sales in our long-term cooperative clients because of its stable quality, fine performance and low price.
In the professional field of winch technology, Hydraulic Winches dominates heavy-duty operations with powerful Hydraulic power, Industrial Winches supports the operation of production lines with industrial-grade robust structures, and Hydraulic 4wd Winches deeply empowers the off-road performance of four-wheel drive. Our K-Series 8000LB Electric Winch, as the culmination of Off-Road Winches and Recovery Winches, redefines the value standard of Electric Winches with outstanding performance and flexible adaptability.
The K-Series 8000LB Electric Winch generates a powerful traction force of 8,000 pounds, precisely matching the off-road needs of SUVs, pickup trucks and other models as well as light engineering towing tasks. It adopts high-torque permanent magnet motors and precision planetary gear sets. The transmission efficiency is 25% higher than that of traditional Winches. It is more convenient to operate and has a cost advantage than Hydraulic Winches. At the same time, it abandons the heavy-duty design of Industrial Winches and achieves efficient mobile operations with a lightweight structure.
The product comes standard with core Winch Accessories such as an integrated control box, 12-meter high-strength galvanized steel cable, and wear-resistant roller rope guide. It also reserves modular upgrade interfaces, allowing for the expansion of advanced accessories such as wireless remote control modules and synthetic fiber cables (40% weight reduction), making it capable of handling diverse scenarios such as desert crossing, snow rescue, and urban road clearance with ease. Whether it is the emergency self-rescue of off-road players when challenging extreme terrains or the mission execution of professional rescue teams, the K-Series 8000LB Electric Winch ensures that every rescue is flawless with a millisecond-level response speed and an IP65 protection rating, making it a reliable all-round winch equipment.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp 24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||

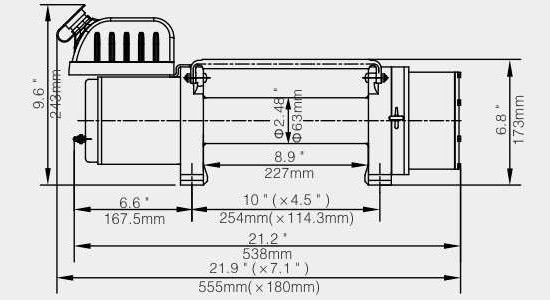

| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions | 21.9″×7.1″×9.6″ 555mm×180mm×243mm | 21.2″×7.1″×11.7″ 538mm×180mm×297mm | 21.2″×7.1″×10.6″ 538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 63.5 28.8 | 64.2 29.1 | 68.1 31.0 |
| (kgs) |
