Model No.: EWK5000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

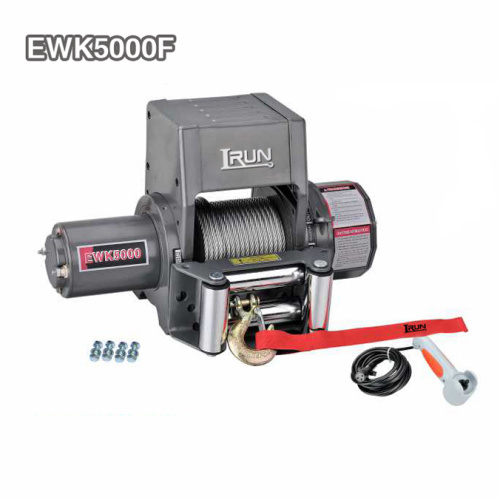

5000 lbs Electric Car Winch Item no. EWK5000F as the repersentive of our first generation Offroad Winch product, it still keep a fine repuation in our long-term cooperative clients is because of our continuous efforts on improving our products to make sure they have stable quality, fine performance and cooperative prices.
Hydraulic Winches: With powerful hydraulic power, it is specially designed for super heavy loads over 5 tons and can handle harsh working conditions such as the transportation of mining equipment and the anchoring of large ships with ease.
Industrial Winches: Industrial-grade all-steel structure, with a protection level of IP67, supports continuous operation around the clock, and is widely used in scenarios such as material transfer on production lines and warehouse hoisting.
Hydraulic 4wd Winches: Exclusive for four-wheel drive vehicles, deeply compatible with the power system, intelligently switching between high and low gears, providing strong protection for complex off-road conditions such as mud and steep slopes.
Offroad Winches: Equipped with lightweight synthetic fiber cables and waterproof motors, their quick installation design is compatible with mainstream off-road vehicles, making them an essential tool for getting out of difficult situations during outdoor adventures.
Recovery Winches: Equipped with automatic braking and remote control system, it has an ultra-fast response of 3 seconds and has passed professional rescue performance tests. It is a reliable partner for road clearance and post-disaster rescue.
Winch Accessories: Complete range of mechanical, electronic and consumable parts, strictly certified, perfectly compatible with all series of winches, effectively expanding functions and enhancing operation safety.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWK5000
| SPECIFICATION | |
| Rated line pull | 5000 lbs (2268 kgs) |
| Motor: permanent magnet | 12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp 24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
| Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
| Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |
| ITEM | EWK5000U | EWK5000S | EWK5000F |
| Overall dimensions | 18.4″×7.1″×9.6″ 466mm×180mm×243mm | 17.5″×7.1″×11.7″ 444mm×180mm×297mm | 17.5″×7.1″×10.6″ 444mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 47.8 21.7 | 48.2 21.9 | 49.8 22.6 |
| (kgs) |
Overall Dimensions：17.5″ x 7.1″ x 10.6″
(L x W x H) 444mm x 180mm x 270mm
