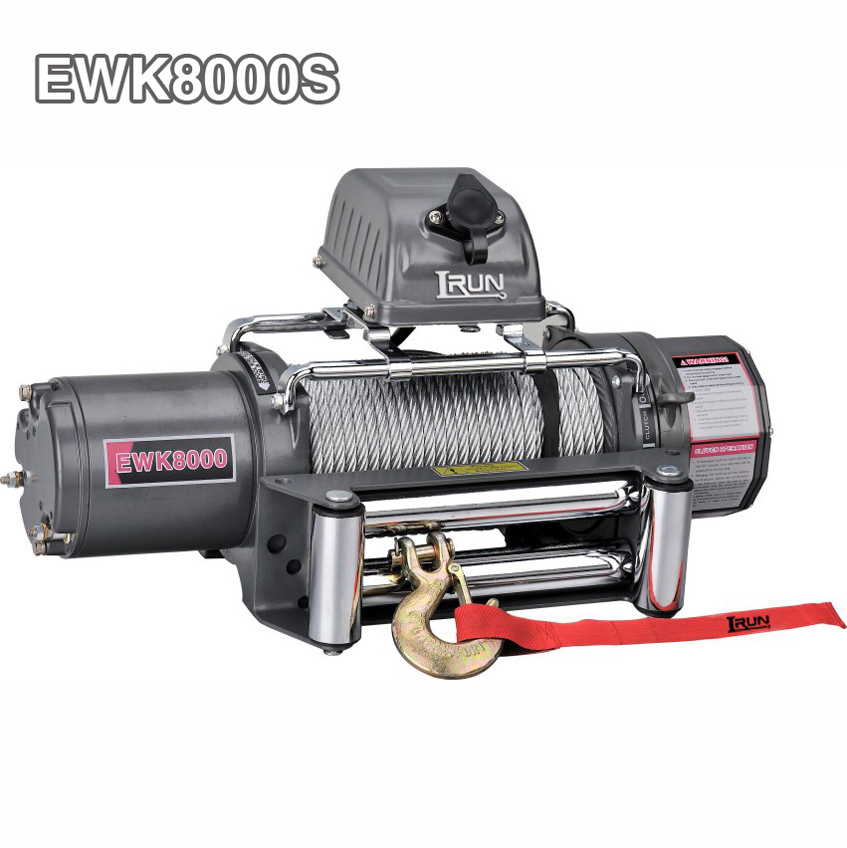

Model No.: EWK8000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 12v, 24v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
When it comes to the powerful performance of Hydraulic Winches, the durability and reliability of Industrial Winches, the all-terrain adaptability of Hydraulic 4wd Winches, the off-road protection of Offroad Winches, and Recovery With the rescue role of Winches and the complete matching of Winch Accessories, our Model No.EWK8000S-8000 lbs Electric Car Winch, as the first generation of craftsmanship, perfectly integrates the outstanding characteristics of these winch fields.
The EWK8000S electric winch is ingeniously designed. Its winch box is firmly attached to the winch rod and has withstood market tests. With its consistent quality, outstanding performance and highly attractive price, it has always maintained a hot sales trend. Whether it's towing heavy equipment in Industrial Settings or rescuing vehicles in off-road situations, the EWK8000S can easily handle challenges with its powerful towing force comparable to that of Hydraulic Winches and the tenacious quality of Industrial Winches. Equipped with a full range of Winch Accessories, from ropes to controllers, it comprehensively enhances the convenience and safety of use, making every operation effortless and smooth.
For enthusiasts who pursue the ultimate off-road experience, this electric winch is just like Hydraulic 4Wd Winches and Offroad Winches, which can provide reliable protection for vehicles in complex road conditions and become a powerful partner for outdoor adventures. In the moment of emergency rescue, it transforms into a professional Recovery Winches, helping the trapped vehicle get out of danger quickly with its efficient performance. Choosing EWK8000S means choosing a high-quality winch solution that combines numerous advantages.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp 24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||
| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions | 21.9″×7.1″×9.6″ 555mm×180mm×243mm | 21.2″×7.1″×11.7″ 538mm×180mm×297mm | 21.2″×7.1″×10.6″ 538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 63.5 28.8 | 64.2 29.1 | 68.1 31.0 |
| (kgs) |
