Model No.: EWX4500A
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
12V or 24V Electric Utv Winch 4500 Lbs

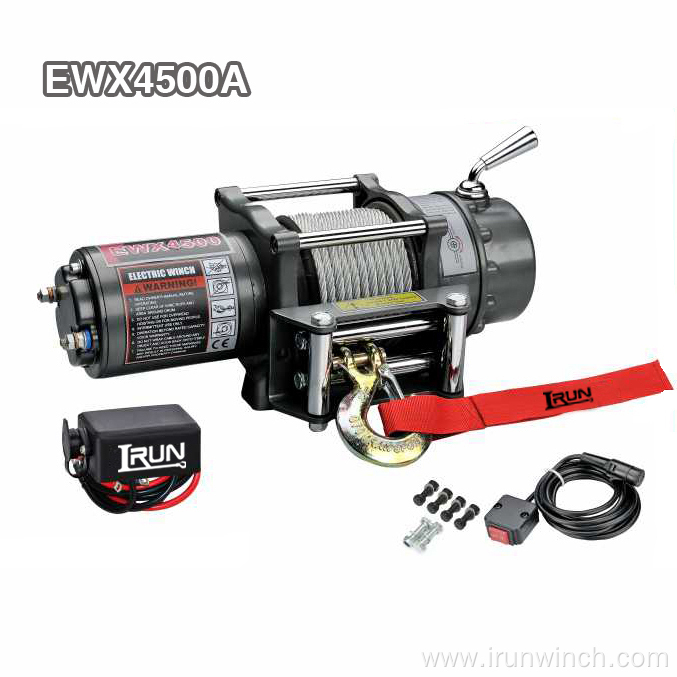

UTV Winch 4500lbs Item No.EWX4500A
Multifunctional UTV Winch EWX4500A model.
It is usually a black winch with a solid steel gear and a yellow zinc plating hook .Besides this flashy looks, the EWX4500A model of Electric UTV winches are packed with 4500 Pounds capabilities.
EWX4500A model is one of the multifunctional electrical UTV Winches that has several advanced features. Just like other winches, it has a remote wireless controller and a detachable control box that simplifies the entire exercise of pulling. With no doubt, this winch serves a great deal in pulling loads.
Features:
EWX4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp |
| 24V:Input: 2.9 kW / 3.9hp; Output: 1.3kW / 1.7hp | |
| Gear reduction ratio | 172:1 |
| Cable (Dia.× L) | Ø15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø1.77″×3.8″ (Ø45mm×93 mm) |
| Mounting bolt pattern | 5.1″×3.78″ (129mm×96 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 7.6(2.3) | |
| 0 | 11.6(3.6) | 12.5(3.8) | 20 | 15 | 2 | 3642(1652) | 17.0(5.2) |
| 1500(680) | 9.2(2.8) | 10.5(3.2) | 70 | 40 | 3 | 3060(1388) | 27.0(8.3) |
| 2500(1134) | 7.8 (2.4) | 8.5(2.6) | 100 | 65 | 4 | 2638(1196) | 38.6(11.8) |
| 3500(1588) | 6.6(2.0) | 7.2(2.2) | 140 | 80 | 5 | 2254(1023) | 47.6(14.5) |
| 4500(2041) | 4.9(1.5) | 5.9(1.8) | 200 | 130 | |||
| ITEM | EWX4500D | EWX4500A | EWX4500U |
| Overall dimensions | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ |
| (L×W×H) | 378m×126mm ×165mm | 378m×126mm ×165mm | 378m×126mm ×165mm |
| Net weight (Ibs) | 27.8 | 28.7 | 28.7 |
| (kgs) | 12.6 | 13.0 | 13.0 |
Overall Dimensions: 14.9″ x 5.0″ x 6.5″
(L x W x H) 378mm x 126mm x 165mm
Net Weight: 13 KGS
