Model No.: EWX2000U
Brand: OEM order acceptable
Place Of Origin: China
Power Source: Electric
Application: Atv/Utv
| Package Type | : | Export Carton |
The file is encrypted. Please fill in the following information to continue accessing it

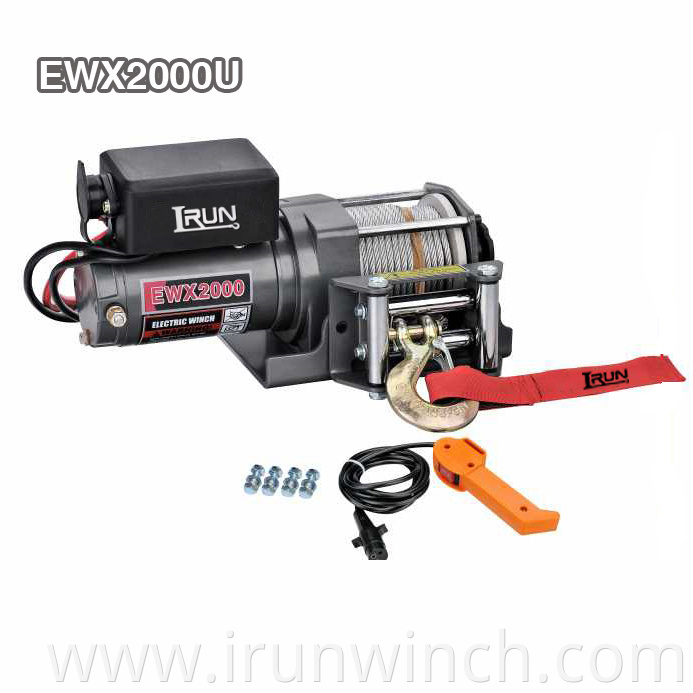

ATV winch: model EWX2000U.
The EWX2000U model of a 2000 Lb winch is a solid black electricity-driven winch which brings together the good looks. With a weight of roughly 8.5 KGs and a length of about 11.5 inches, this winch is capable of pulling up to 907KGs .
with a reducer gear made of pure steel and a powerful permanent magnet motor, the durability of the 2000 Lb winch is less of a concern. In addition, the winch comes with a detachable control box fixing on winch motor.
Features:
1.)Full steel reducer gear
2) Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V power drive optional
5.)High current working switch control directly
6.)ATV Handlebar switch control
7.)Control box detachable fixing optional
8.)Control box separate fixing optional
9.)Remote control through contorl box and switch
10.) Wireless remoto control avilable
EWX2000
| SPECIFICATION | |
| Rated line pull | 2000 lbs (907 kgs) |
| Motor: permanent magnet | 12V:Input: 1.7kW / 2.3hp; Output: 0.6kW / 0.8hp |
| | 24V:Input: 1.9kW / 2.6hp; Output: 0.7kW / 0.9hp |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø5/32″×49′(Ø4mm×15m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| | 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| | | | | | 6 | 940(426) | 49.2(15.0) |
| ITEM | EWX2000D | EWX2000A | EWX2000U |
| Overall dimensions | 11.5″×4.5″×4.3″ | 11.5″×4.5″×4.3″ | 12.1″×4.5″×5.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 17.8 | 18.6 | 18.4 |
| (kgs) | 8.1 | 8.5 | 8.4 |

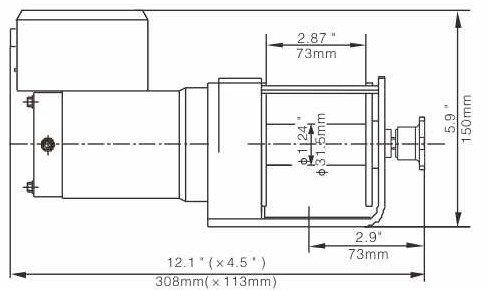

Overall dimensions: 12.1″x4.5″x5.9″
(LxWxH) 308x113x150mm
Net Weight: 8.4kgs
