Model No.: EWX3000D
Brand: OEM ORDER ACCEPABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

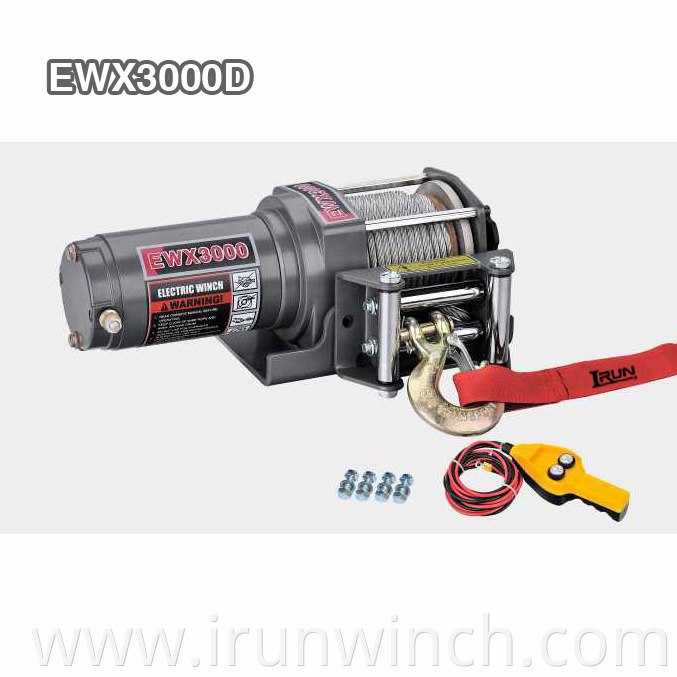

Atv Winch 3000LB Item No.EWX3000D
Advancement in development of winches is making them easier, durable and affordable . With the EWX3000D model of ATV winches is a ATV winch with an average of 9.5 KG weight that is effective in pulling heavier masses of up to 1.361 Tones (1361 KGs).
All our ATV Winches are an outstanding work of art in their designs, but this particular EWX3000D model winches for ATV have design to you earn for .It has a dark body, a golden colored hook and a silvery colored string that makes it mouthwatering by the looks.
Features:
1.)Full steel reducer gear
2.)Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V Power drive optional
5.)High current workign switch control directly
6.) ATV handlebar switch control
7.)Control box detachable fixing optional
8.) Control box Separate fixing optional
9.)Remote control through control box and switch
10.)Wireless remote control available
EWX3000
| SPECIFICATION | |
| Rated line pull | 3000 lbs (1361 kg) |
| Motor: permanent magnet | 12V:Input: 2.2kW / 2.9hp; Output: 0.8kW / 1.1hp |
| 24V:Input: 2.4kW / 3.2hp; Output: 0.9kW / 1.2hp | |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø3/16″×46′(Ø4.8mm×14m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3000(1361) | 5.6(1.7) | |
| 0 | 10.2(3.1) | 9.8(3.0) | 18 | 15 | 2 | 2370(1075) | 12.1(3.7) |
| 1000(454) | 7.5(2.3) | 8.9(2.7) | 90 | 45 | 3 | 1960(889) | 19.7(6.0) |
| 2000(907) | 5.9(1.8) | 7.5(2.3) | 130 | 65 | 4 | 1670(756) | 27.9(8.5) |
| 3000(1361) | 4.3(1.3) | 6.2(1.9) | 180 | 100 | 5 | 1460(662) | 37.1(11.3) |
| 6 | 1290(585) | 45.9(14.0) | |||||
| ITEM | EWX3000D | EWX3000A | EWX3000U |
| Overall dimensions | 12.8″×4.5″×4.3″ | 12.8″×4.5″×4.3″ | 13.0″×4.5″×5.9 “ |
| (L×W×H) | 324mm×113mm×108 mm | 324mm×113mm×108 mm | 331mm×113mm×150mm |
| Net weight (Ibs) | 21.0 | 21.8 | 21.6 |
| (kgs) | 9.5 | 9.9 | 9.8 |

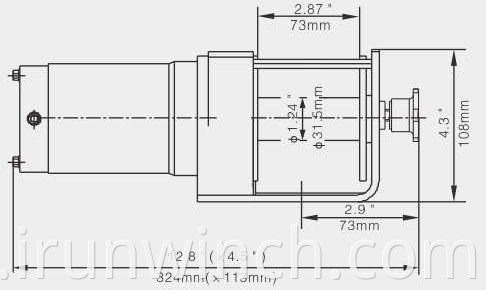

Overall Dimensions: 12.8″ x 4.5″ x 4.3″
(L x W x H) 324mm x 113mm x 108mm
Net Weigh: 9.5 KGS
