Model No.: EWX3000A
Brand: OEM ORDER ACCEPABLE
Place Of Origin: China
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the vast field of mechanical traction, Hydraulic Winches dominates heavy engineering sites with its powerful Hydraulic power, Industrial Winches firmly holds the leading position in industrial lifting with its solid structure, and Hydraulic 4wd Winches conquers muddy and dangerous shoals with its all-terrain adaptability. In the off-road world of ATVs and UTVs, the professional ATV-UTV winch is truly capable of "moving mountains and seas". Among them, the EWX3000A Atv Winch, with a lightweight body of approximately 9.5 kilograms, generates an astonishing pulling force of 3,000 pounds (1.361 tons), perfectly integrating the fearless exploration spirit of Offroad Winches and the efficient rescue capabilities of Recovery Winches. Paired with high-quality Winch Accessories, it brings an unprecedented towing experience to all-terrain vehicle users.
Features:
1.)Full steel reducer gear
2.)Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V Power drive optional
5.)High current workign switch control directly
6.) ATV handlebar switch control
7.)Control box detachable fixing optional
8.) Control box Separate fixing optional
9.)Remote control through control box and switch
10.)Wireless remote control available
EWX3000
| SPECIFICATION | |
| Rated line pull | 3000 lbs (1361 kg) |
| Motor: permanent magnet | 12V:Input: 2.2kW / 2.9hp; Output: 0.8kW / 1.1hp |
| 24V:Input: 2.4kW / 3.2hp; Output: 0.9kW / 1.2hp | |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø3/16″×46′(Ø4.8mm×14m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3000(1361) | 5.6(1.7) | |
| 0 | 10.2(3.1) | 9.8(3.0) | 18 | 15 | 2 | 2370(1075) | 12.1(3.7) |
| 1000(454) | 7.5(2.3) | 8.9(2.7) | 90 | 45 | 3 | 1960(889) | 19.7(6.0) |
| 2000(907) | 5.9(1.8) | 7.5(2.3) | 130 | 65 | 4 | 1670(756) | 27.9(8.5) |
| 3000(1361) | 4.3(1.3) | 6.2(1.9) | 180 | 100 | 5 | 1460(662) | 37.1(11.3) |
| 6 | 1290(585) | 45.9(14.0) | |||||
| ITEM | EWX3000D | EWX3000A | EWX3000U |
| Overall dimensions | 12.8″×4.5″×4.3″ | 12.8″×4.5″×4.3″ | 13.0″×4.5″×5.9 “ |
| (L×W×H) | 324mm×113mm×108 mm | 324mm×113mm×108 mm | 331mm×113mm×150mm |
| Net weight (Ibs) | 21.0 | 21.8 | 21.6 |
| (kgs) | 9.5 | 9.9 | 9.8 |

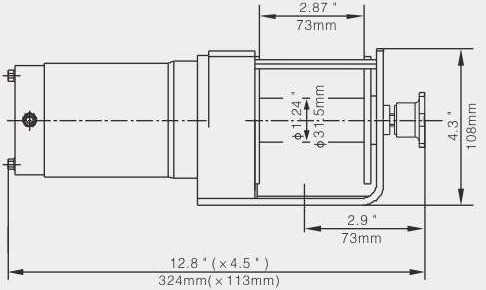

Overall Dimensions: 12.8″ x 4.5″ x 4.3″
(L x W x H) 324mm x 113mm x 108mm
Net Weigh: 9.8 KGS
