Model No.: EWX4500U
Brand: OEM ORDER ACCEPTABLE
Place Of Origin: China
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

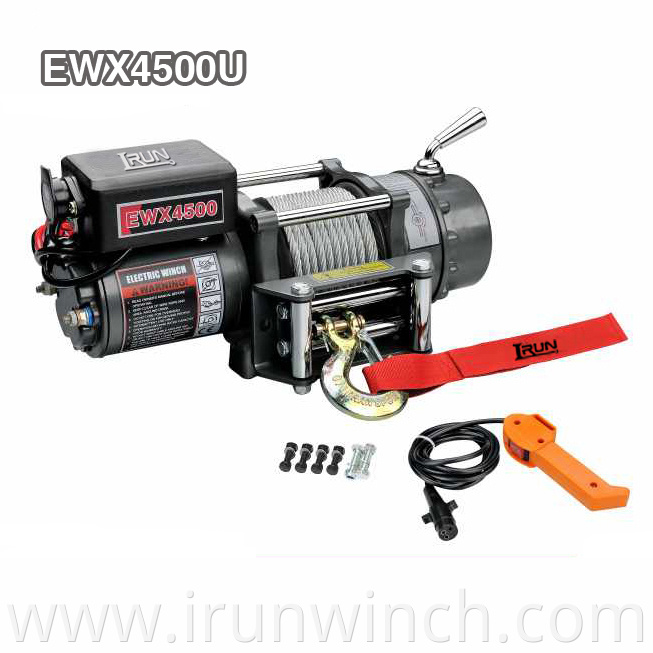

Multifunctional UTV Winch our model EWX4500U
This model of Atv Winch 4500 Lb is perhaps the commonest among the multifunctional UTV models of us . This assures buyers of both quality and durability. Besides, its accessories are always readily available thus one need not to worry when the winch fails.
In addition to the quality, it also got cool features to kick it up. For instance, this electric UTV Winch ensures surge protection and utilizes low power usage of about 12V. An automatic braking system ensures ease in starting and the stopping of pulling tasks. The EWX4500U model is recommended for one in search of cheap and efficient winches.
Features:
EWX4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp |
| | 24V:Input: 2.9 kW / 3.9hp; Output: 1.3kW / 1.7hp |
| Gear reduction ratio | 172:1 |
| Cable (Dia.× L) | Ø15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø1.77″×3.8″ (Ø45mm×93 mm) |
| Mounting bolt pattern | 5.1″×3.78″ (129mm×96 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| | 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 7.6(2.3) |
| 0 | 11.6(3.6) | 12.5(3.8) | 20 | 15 | 2 | 3642(1652) | 17.0(5.2) |
| 1500(680) | 9.2(2.8) | 10.5(3.2) | 70 | 40 | 3 | 3060(1388) | 27.0(8.3) |
| 2500(1134) | 7.8 (2.4) | 8.5(2.6) | 100 | 65 | 4 | 2638(1196) | 38.6(11.8) |
| 3500(1588) | 6.6(2.0) | 7.2(2.2) | 140 | 80 | 5 | 2254(1023) | 47.6(14.5) |
| 4500(2041) | 4.9(1.5) | 5.9(1.8) | 200 | 130 | | | |
| ITEM | EWX4500D | EWX4500A | EWX4500U |
| Overall dimensions | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ |
| (L×W×H) | 378m×126mm ×165mm | 378m×126mm ×165mm | 378m×126mm ×165mm |
| Net weight (Ibs) | 27.8 | 28.7 | 28.7 |
| (kgs) | 12.6 | 13.0 | 13.0 |

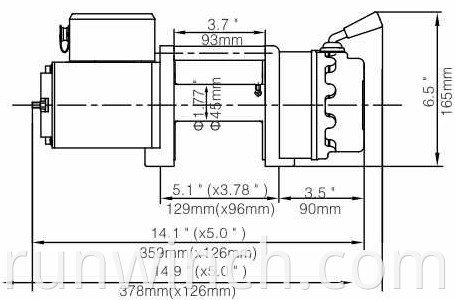

Overall Dimensions 14.9” x 5.0″ x 6.5″
(L x W x H) 378mm x 126mm x 165mm
Net Weigh: 13 KGS
