Model No.: EWX3000U
Brand: OEM ORDER ACCEPTABLE
Place Of Origin: China
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Built for extreme conditions, the Pro Series 3000LB ATV Winch delivers unmatched pulling power for offroad recovery, outperforming standard Hydraulic Winches with its efficient electric design. Engineered to meet the demands of rugged terrain, this winch bridges the gap between Industrial Winches and recreational ATV gear, offering commercial-grade durability in a compact package.
Unlike bulky Hydraulic 4wd Winches, our Pro Series provides seamless 12V/24V compatibility, making it ideal for deep mud, rock crawling, and steep inclines. Whether you're tackling tough trails or need reliable Recovery Winches for work sites, this model ensures maximum performance with minimal maintenance.
Upgrade your setup with premium winch accessories, including synthetic ropes, wireless remotes, and reinforced fairleads—all designed to enhance your Pro Series winch for unstoppable offroad adventures.

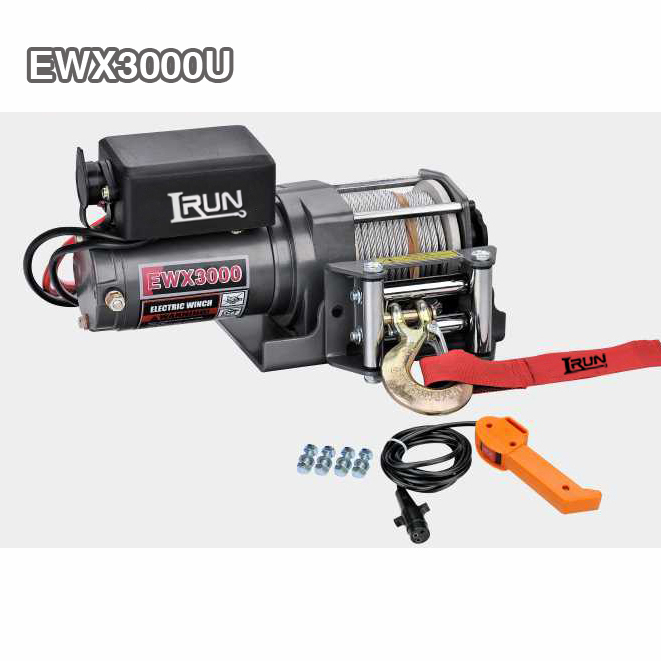

The winch model EWX3000U.
Not all 3000 winches perform it better and efficiently than the cool EWX3000U winch. It is a medium sized winch of about 13 inches long and weighs about 9.8 KGs. This 3000 Winch For Atv has a detachable color box fixing on winch motor.
a self-adjusting power system that regulates high voltages making it durable even on high DC voltages.
Though small in dimensions and weight, the EWX3000U model of 3000 ATV winch is capable of pulling an average of 3000 lbs. It has a strong spooling clutch that enables easy working of the winch.
Features:
1.)Full steel reducer gear
2.)Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V Power drive optional
5.)High current workign switch control directly
6.) ATV handlebar switch control
7.)Control box detachable fixing optional
8.) Control box Separate fixing optional
9.)Remote control through control box and switch
10.)Wireless remote control available
EWX3000
| SPECIFICATION | |
| Rated line pull | 3000 lbs (1361 kg) |
| Motor: permanent magnet | 12V:Input: 2.2kW / 2.9hp; Output: 0.8kW / 1.1hp |
| 24V:Input: 2.4kW / 3.2hp; Output: 0.9kW / 1.2hp | |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø3/16″×46′(Ø4.8mm×14m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3000(1361) | 5.6(1.7) | |
| 0 | 10.2(3.1) | 9.8(3.0) | 18 | 15 | 2 | 2370(1075) | 12.1(3.7) |
| 1000(454) | 7.5(2.3) | 8.9(2.7) | 90 | 45 | 3 | 1960(889) | 19.7(6.0) |
| 2000(907) | 5.9(1.8) | 7.5(2.3) | 130 | 65 | 4 | 1670(756) | 27.9(8.5) |
| 3000(1361) | 4.3(1.3) | 6.2(1.9) | 180 | 100 | 5 | 1460(662) | 37.1(11.3) |
| 6 | 1290(585) | 45.9(14.0) | |||||
| ITEM | EWX3000D | EWX3000A | EWX3000U |
| Overall dimensions | 12.8″×4.5″×4.3″ | 12.8″×4.5″×4.3″ | 13.0″×4.5″×5.9 “ |
| (L×W×H) | 324mm×113mm×108 mm | 324mm×113mm×108 mm | 331mm×113mm×150mm |
| Net weight (Ibs) | 21.0 | 21.8 | 21.6 |
| (kgs) | 9.5 | 9.9 | 9.8 |
Overall Dimensions: 13.0″ x 4.5″ x 5.9″
(L x W x H) 331mm x 113mm x 150mm
Net Weigh: 9.8 KGS
