Model No.: EWX2000A
Power Source: Electric
Application: Atv/Utv
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

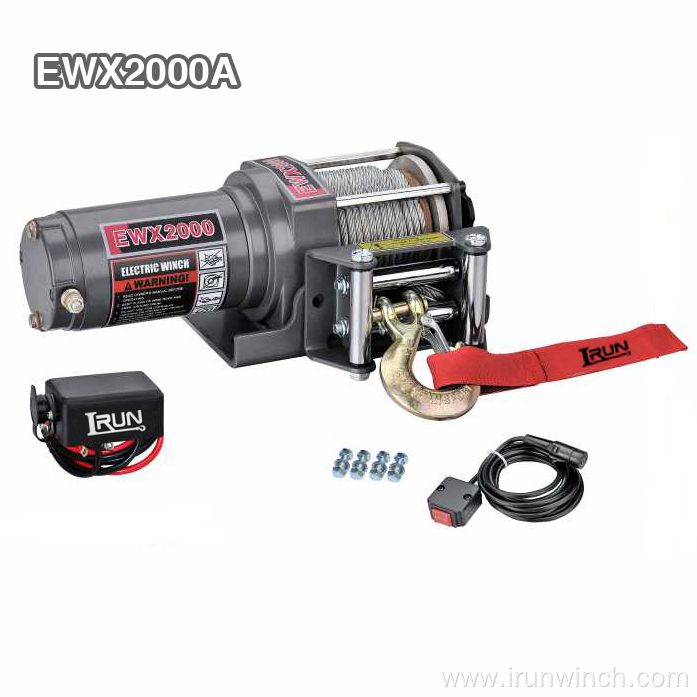

EWX2000A ATV winch.
If you are looking for some cheap, easy to handle and durable ATV winches, then you'd better think of acquiring a pack of 2000 pound ATV Winches. The ATV winch 2000 Lb is a true definition of advanced winch technology.
A system of braking that is automated and incorporated in our ATV winch. Besides the braking system, the winch can also be controlled remotely by a wireless connection. The control box of the ATV winch 2000 Lb is detachable making its control even more convenient.
Features:
1.)Full steel reducer gear
2) Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V power drive optional
5.)High current working switch control directly
6.)ATV Handlebar switch control
7.)Control box detachable fixing optional
8.)Control box separate fixing optional
9.)Remote control through contorl box and switch
10.) Wireless remoto control avilable
EWX2000
| SPECIFICATION | |
| Rated line pull | 2000 lbs (907 kgs) |
| Motor: permanent magnet | 12V:Input: 1.7kW / 2.3hp; Output: 0.6kW / 0.8hp |
| | 24V:Input: 1.9kW / 2.6hp; Output: 0.7kW / 0.9hp |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø5/32″×49′(Ø4mm×15m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| | 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| | | | | | 6 | 940(426) | 49.2(15.0) |
| ITEM | EWX2000D | EWX2000A | EWX2000U |
| Overall dimensions | 11.5″×4.5″×4.3″ | 11.5″×4.5″×4.3″ | 12.1″×4.5″×5.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 17.8 | 18.6 | 18.4 |
| (kgs) | 8.1 | 8.5 | 8.4 |

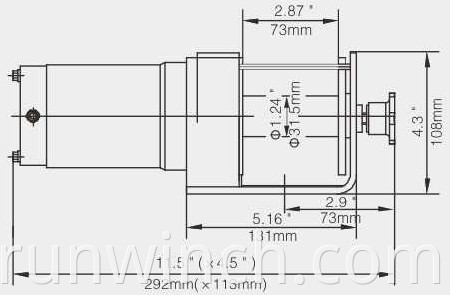

Overall dimensions: 11.5″x4.5″x4.3″
(LxWxH) 292x113x108mm
Net Weight: 8.5KGS
