12000LB Ultra-Torque Waterproof Truck Winch
12000LB Ultra-Torque Waterproof Truck Winch
12000LB Ultra-Torque Waterproof Truck Winch

12000LB Ultra-Torque Waterproof Truck Winch

Get Latest Price
Payment Type:L/C,T/T,D/P
Incoterm:FOB,CFR,CIF,EXW
Transportation:Ocean,Air
Port:SHANGHAI,NINGBO
Product Attributes

Model No.EWN12000S

Power SourceElectric

ApplicationAuto

Voltage24v, 12v

Place Of OriginChina

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : EXPORT CARTON

The file is encrypted. Please fill in the following information to continue accessing it

Heavy Duty Truck Winch
Product Description

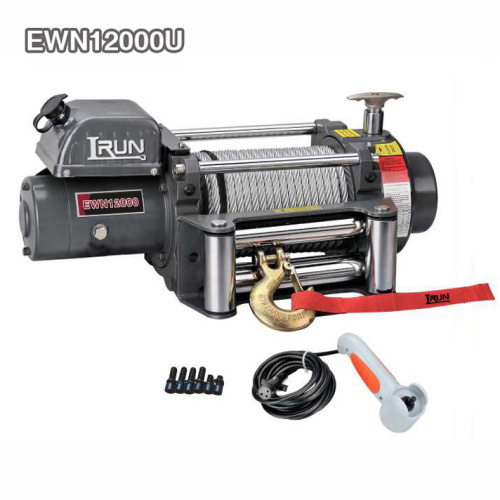

12000LB Ultra-Torque Waterproof Truck Winch

In the rugged landscapes of outdoor expeditions and the demanding arenas of industrial engineering, winches are the unsung heroes that uphold the rhythm of operations. Hydraulic Winches unleash relentless, consistent power to tackle colossal loads; Industrial Winches endure high-stress environments with unwavering resilience; Hydraulic 4wd Winches carve paths through treacherous terrains with formidable adaptability; Offroad Winches offer agile solutions for adventurers pushing boundaries; and Recovery Winches stand as the ultimate safeguard, rescuing vehicles and equipment from precarious situations. Amidst this diverse lineup of mechanical marvels, we’re excited to introduce a heavyweight contender that combines the best of all worlds—the Heavy Duty Electric Truck Winch 12000 lb Item No.EWN12000U.​

The EWN series heavy-duty winch represents a quantum leap beyond its EWX counterparts. Engineered for longevity, it boasts an extended service life, allowing it to withstand the rigors of continuous use. Its rapid rope retraction speed cuts down precious time during critical operations, while the enhanced transmission efficiency ensures minimal power loss and maximum performance. Tailored for the harshest off-road landscapes and demanding engineering projects, the EWN12000U is not just a Recovery Winch—it’s the gold standard. With a jaw-dropping 12,000-pound winching capacity, it comes fully equipped with a user-friendly control box, a high-strength hooked steel wire rope, precision rollers, and other essential Winch Accessories, leaving no detail overlooked in fulfilling your rescue and towing needs.​

The heavy-duty design of the EWN12000U is a testament to engineering brilliance. The seamless integration of an automatic helical cone braking system and a patented hardened steel three-stage planetary gear reducer sets a new benchmark for safety and efficiency. The former provides instant, reliable stopping power, while the latter maximizes energy transfer, ensuring smooth, efficient operation even under extreme loads. Whether it’s an off-road vehicle mired in waist-deep mud or massive industrial equipment that needs repositioning at a construction site, the EWN12000U rises to the challenge with ease. Paired with Hydraulic Winches, Industrial Winches, and other heavy-hitting equipment, it forms an unbeatable alliance, ready to take on any arduous task that comes its way.



Features:

1.) Free spooling clutch

2.) Automatic screw cone braking action

3.) Series wound motor

4.) Patent design three stage planetary gear reducer

5.) Specially designed shape for convenience of installation and good looking

6.) Remote control through control box and switch

7.) Wireless remote control available

8.) DC 12V or DC 24V Power drive optional

EWN12000

SPECIFICATION
Rated line pull 12000 lbs (5443kgs)
Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.1kW /2.8hp

24V:Input: 5.3kW / 7.1hp;Output: 2.5 kW /3.4hp


Gear reduction ratio 332:1
Cable (Dia.× L) Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m)
Drum size (Dia.× L) Ø2.8 “×8.6” (Ø72mm×219mm)
Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) 4-M12
Pull Speed Amperes Volts First layer Line Pull And Rope Capacity In Layer
Line Pull

lbs (kgs)

Line Speed

Ft/min (m/min)

Current

A

Layer

of cable

Rated line pull

lbs(kgs)

Total Rope On Drum

ft (m)

  12V DC 24V DC 12V DC 24V DC 1 12000(5443) 18.4(5.6)
0 16.4(5.0) 17.7(5.4) 80 40 2 9800(4445) 41.0(12.5)
6000(2722) 7.54(2.3) 7.9(2.4) 260 110 3 8300(3765) 65.6(20.0)
8000(3629) 6.4(1.95) 6.6(2.0) 310 145 4 7200(3266) 83.7(25.5)
10000(4536) 5.74(1.75) 5.9(1.8) 380 185
12000(5443) 4.76(1.45) 5.6(1.7) 450 220
ITEM EWN12000U EWN12000S
Overall dimensions 22.6″×8.1″×9.7″

573mm×206mm×246mm

22.6″×8.1″×11.8″

573mm×206mm×299mm


(L×W×H)
Net weight (Ibs) 132.3

61

132.4

61.3


(kgs)

Overall Dimensions 22.6″ x 8.1″ x 9.7″
(L x W x H) 573mm x 206mm x 246mm

Net Weight 61 KGS

12000 lb Heavy Duty Electric Recovery Winch
