Model No.: EWN15000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the field of Winches, Hydraulic Winches, with its stable and powerful force, is competent for the hoisting tasks of heavy equipment. Industrial Winches, with their long-lasting durability, serve as a solid backing for industrial scenarios. Hydraulic 4wd Winches, relying on the adaptability of four-wheel drive, assist the vehicle in traversing dangerous roads; Offroad Winches are powerful tools for off-road explorers to break through difficult situations; Recovery Winches took on the responsibility of rescue in an emergency. The 15,000 lbs Heavy Duty Electric Truck Winch EWN15000U, with innovative technology and hardcore strength, redefines the performance standard of heavy winches!

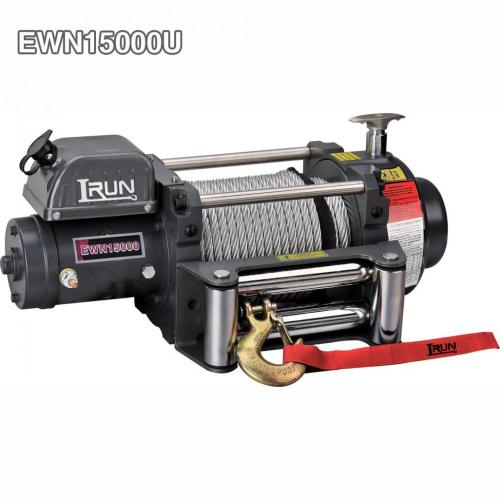

The EWN15000U heavy-duty electric truck winch is specially designed for extreme off-road driving and engineering rescue operations. With an extremely strong pulling force of 15,000 pounds and a patented three-stage planetary gear reducer, Recovery Winches can quickly carry out rescue operations, whether it is a truck deeply trapped in the desert or machinery stuck at a construction site, demonstrating its efficient rescue capabilities to the fullest. Compared with Hydraulic Winches, the electrically driven one does not require a complex hydraulic system, and is more flexible to operate and convenient to maintain. Meanwhile, inheriting the robust quality of Industrial Winches, the alloy body and precise gear structure ensure stability and reliability during high-intensity operations.
As a classic of the EWN series, it not only features an extremely long service life, faster rope winding speed and higher transmission efficiency, but also comes equipped with professional Winch Accessories such as a pull rod control box, roller cable guide and high-strength steel wire rope. The details demonstrate professionalism. Whether it's challenging extreme terrains side by side with Offroad Winches or working in conjunction with Hydraulic 4Wd Winches to handle complex road conditions, the EWN15000U stands out with its hardcore performance, becoming the trusted choice for off-road enthusiasts and engineering workers, ensuring the safety of every difficult rescue and operation!
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
9.) SWR tensioner available
EWN15000
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.8 kW /3.8hp 24V:Input: 6.0 kW / 8.0hp;Output: 3.5 kW /4.7hp |
| Gear reduction ratio | 446:1 |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8. 5” (Ø88mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 15000(6804) | 19.7(6.0) | |
| 0 | 13.1(4.0) | 16.1(4.9) | 90 | 48 | 2 | 12000(5443) | 42.7(13.0) |
| 8000(3629) | 6.6(2.0) | 7.2(2.2) | 270 | 140 | 3 | 10100(4581) | 68.9(21.0) |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 320 | 180 | 4 | 8720(3955) | 83.7(25.5) |
| 12000(5443) | 4.6(1.4) | 5.9(1.8) | 380 | 200 | |||
| 15000(6804) | 4.3(1.3) | 5.6(1.7) | 450 | 250 | |||
| ITEM | EWN15000U | EWN15000S | ||
| Overall dimensions (L×W×H) | 23.3″×8.9″×10.3″(12V) 593mm×226mm×262mm(12V) | 23.3″×8.9″×12.4″(12V) 593mm×226mm×316mm(12V) | ||
| 22.7″×8.9″×10.3″(24V) 576mm×226mm×262mm(24V) | 22.7″×8.9″×12.4″(24V) 576mm×226mm×316mm(24V) | |||
| Net weight (Ibs) | 162.9 73.8 | 163.3 74.1 | ||
| (kgs) | ||||
Overall Dimensions 23.3″ x 8.9″ x 10.3″
(L x W x H) 593mm x 226mm x 262mm
Net Weight 73.8 KGS
