Electric Heavy Duty Winch For Truck 17500LB
Electric Heavy Duty Winch For Truck 17500LB
Electric Heavy Duty Winch For Truck 17500LB

Electric Heavy Duty Winch For Truck 17500LB

Get Latest Price
Payment Type:L/C,T/T,D/P
Incoterm:FOB,CFR,CIF,EXW
Transportation:Ocean,Air
Port:SHANGHAI,NINGBO
Product Attributes

Model No.EWN17500S

Place Of OriginChina

Power SourceElectric

ApplicationAuto

Voltage24v, 12v

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : EXPORT CARTON

The file is encrypted. Please fill in the following information to continue accessing it

Heavy Duty Truck Winch
Product Description

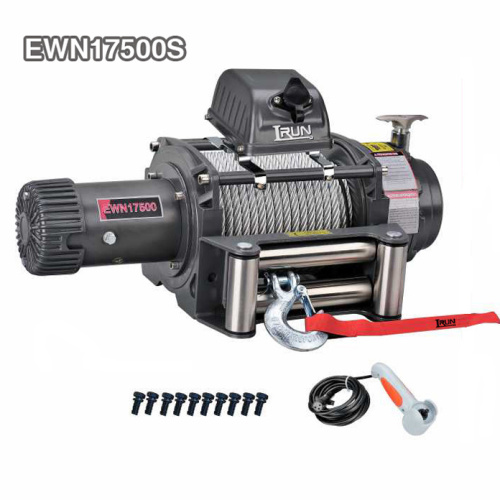

Electric Heavy duty Truck Winch 17500LB

In the field of Winches, Hydraulic Winches, with its stable power output, has become a pillar in heavy machinery operations. With its robust and durable features, Industrial Winches stand firm in the rigorous tests of industrial scenarios. Hydraulic 4wd Winches rely on the adaptability of four-wheel drive to help the vehicle travel smoothly in complex terrains; Offroad Winches is a powerful assistant for off-road enthusiasts to conquer the wilderness; Recovery Winches takes on the mission of emergency rescue. And the 17500 lbs Electric Truck Winch Item No.EWN17500S redefines the peak standard of Heavy-Duty Winches with extraordinary strength! ​

The EWN17500S electric truck winch, with an astonishing winch capacity of up to 17,500 pounds, can be regarded as the "power bearer" among Recovery Winches. Whether it is a heavy truck trapped in a swamp or engineering equipment that needs to be relocated urgently, it can quickly carry out rescue operations with its strong pulling force, which is efficient and reliable. Compared with the complex Hydraulic pipelines and high maintenance costs of Hydraulic Winches, it adopts electric drive, is easy to operate and responds quickly. At the same time, it inherits the hardcore quality of Industrial Winches. The body, made of all-steel structure and precise craftsmanship, ensures that it remains rock-solid even under high-intensity operations. ​

It comes standard with Winch Accessories such as a control box, steel wire rope and roller cable guide. From operation to traction, every detail is designed for professional rescue and operation. The built-in heavy-duty automatic spiral cone braking device builds a solid defense line for operational safety. The patented hardened all-steel three-stage planetary gear reducer achieves efficient transmission, faster rope retraction speed and lower power loss. As a classic of the heavy-duty winch EWN series, the EWN17500S has been comprehensively upgraded in terms of service life and working efficiency. Whether it is paired with Offroad Winches to challenge extreme off-roading or with Hydraulic 4Wd Winches to deal with extreme road conditions, it can stand out with outstanding performance. It is widely applicable to demanding off-road exploration and engineering rescue scenarios, and has become the top choice for professionals and off-road enthusiasts!

Features:

1. Full steel reducer gear

2. Free free spooling clutch

3. Automatic screw cone braking action

4. Series wound motor.

5. Runva patent tree stage planetary gear reducer.

6. Sepcially designed shape for convenience of installation and good looking.

7. Remote control through control box and switch

8. Wireless remote control available

9. DC 12V or DC 24V Power drive optional

10. Heavy duty design

11. Standard 4-way roller fairlead

12. Clevis pinned/latched hook

Rated line pull 17500 lbs(7938 kgs)

Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp

24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp

Gear reduction ratio 430:1

Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)

Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)

Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12

Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)

Net weight Ibs (kgs) 148.4(67.3)

EWN17500

SPECIFICATION
Rated line pull 17500 lbs (7938 kgs)
Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp

24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp


Gear reduction ratio 430:1
Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)
Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)
Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm)

10 “×6.5 ” (254mm×165.1mm) 8-M12

Pull Speed Amperes Volts First layer Line Pull And Rope Capacity In Layer
Line Pull

lbs (kgs)

Line Speed

Ft/min (m/min)

Current

A

Layer

of cable

Rated line pull

lbs(kgs)

Total Rope On Drum

ft (m)

  12V DC 24V DC 12V DC 24V DC 1 17500(7938) 18.0(6.0)
0 19.7(6.0) 13.8(4.4) 100 40 2 14140(6414) 40.7(13.0)
6000(2722) 7.2(2.2) 6.9(2.1) 220 100 3 11862(5381) 65.9(21.0)
10000(4536) 5.6(1.7) 5.9(1.8) 320 140 4 10217(4634) 86.9(26.5)
12500(5670) 4.9(1.5) 5.2(1.6) 350 180
14000(6350) 4.6(1.4) 4.6(1.4) 380 200
17500(7938) 3.0(0.9) 3.9(1.2) 450 250
ITEM EWN17500U EWN17500S
Overall dimensions 24.4″×8.4″×11.4″

620mm×214mm×290mm

24.4″×8.4″×12.6″

620mm×214mm×321mm


(L×W×H)
Net weight (Ibs) 147.7

67.0

148.4

67.3


(kgs)

Overall Dimensions 24.4″ x 8.4″ x 12.6″
(L x W x H) 620mm x 214mm x 321mm

Net Weight 67.3 KGS

Electric Heavy duty Truck Winch 17500lbs
