17500 lb Electric Heavy Duty Truck Winch

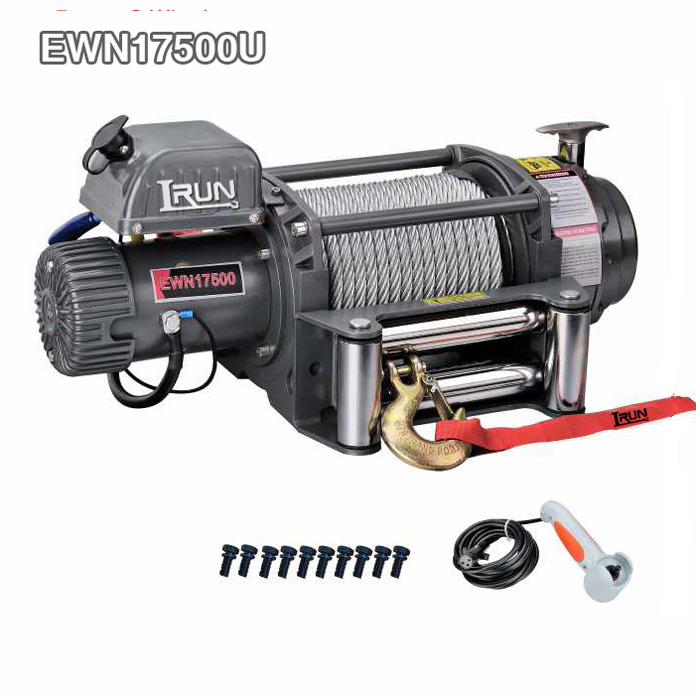

17,500-pound heavy-duty electric Truck Winch EWN17500U - Powerful performance, conquering the world of extreme Winches. Hydraulic Winches meets heavy-load demands with stable power, and Industrial Winches stands firm on the industrial front line with its robust and durable features. Hydraulic 4wd Winches are compatible with four-wheel drive systems to challenge perilous terrains. Offroad Winches help off-road enthusiasts break through difficult situations, while Recovery Winches turn the tide in critical moments. The 17,500-pound heavy-duty electric truck winch EWN17500U, with its powerful capabilities and innovative technology, redefines the performance boundaries of Heavy-Duty Winches! ​

The EWN17500U heavy-duty electric truck winch, equipped with a patented three-stage planetary gear reducer, has an astonishing winch capacity of up to 17,500 pounds and can be called the "rescue beast" among Recovery Winches. Whether it is an engineering vehicle trapped in a swamp or a heavy truck stuck in the wilderness, it can quickly rescue and efficiently complete the task with its strong pulling force. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, which is more convenient to operate and responds more quickly. Inheriting the durable quality of Industrial Winches at the same time, the all-steel body structure and precise gear set ensure that it remains rock-solid under high-intensity operations. ​

Each EWN17500U comes standard with professional Winch Accessories such as a control box, hooked steel wire rope, and roller cable guide. From operation to traction, every detail showcases professionalism. It is equipped with a built-in heavy-duty automatic spiral cone braking device, providing double protection for operational safety. The patented hardened all-steel three-stage planetary gear reducer achieves ultra-high transmission efficiency, faster rope retraction speed and lower power loss. As a classic of the heavy-duty winch EWN series, the EWN17500U has been comprehensively upgraded in terms of service life and working efficiency. Whether exploring extreme off-road conditions with Offroad Winches or cooperating with Hydraulic 4Wd Winches to deal with complex environments, It can stand out with its outstanding performance and is widely applicable to demanding off-road exploration and engineering rescue scenarios, becoming a trusted hardcore equipment for professionals!

Features:

1.) Full steel reducer gear

2.) Pull and turn free spooling clutch

3.) Automatic screw cone braking action

4.) Heavy duty design

5.) Standard 4-way roller fairlead

6.) Clevis pinned/latched hook

7.)Series wound motor

8.) Patent design three stage planetary gear reducer

9.) Specially designed shape for convence of installation and good looking

10.)Remote control through control box and switch

11.) DC 12V or DC 24V Power drive optional

12.) Wireless remote optional

Rated line pull 17500 lbs(7938 kgs)

Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp

24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp

Gear reduction ratio 430:1

Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)

Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)

Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12

Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)

Net weight Ibs (kgs) 148.4(67.3)

EWN17500

Overall Dimensions 24.4″ x 8.4″ x 11.4″
(L x W x H) 620mm x 214mm x 290mm

Net Weight 67.0 KGS
