Model No.: EWN15000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the world of winches, each type of product has its own role. Hydraulic Winches play a key role in heavy hoisting operations with its stable and powerful output. Industrial Winches, with their robust and durable features, have become powerful assistants in factories and infrastructure projects. Hydraulic 4wd Winches is compatible with the four-wheel drive system, helping the vehicle conquer steep terrains; Offroad Winches are essential tools for off-road enthusiasts to deal with difficult situations. Recovery Winches takes on the mission of emergency rescue. And the brand-new 15,000 lbs Electric duty Car Winch ITEM NO. EWN15000S, integrating the strengths of all, is coming with great force!

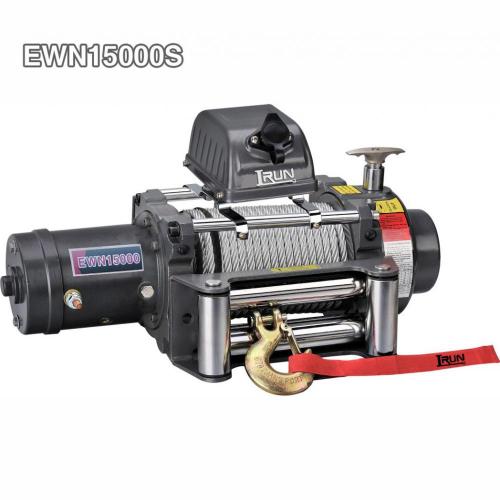

The EWN15000S electric vehicle winch is specially designed for harsh off-road and engineering environments. With an extremely strong pulling force of 15,000 pounds, it far exceeds similar products. Whether it is a car stuck in a mud pit or an engineering equipment that needs to be moved, it can be easily towed, perfectly demonstrating the rescue strength of Recovery Winches. Compared with Hydraulic Winches, it is electrically driven and does not require complex maintenance of hydraulic pipelines, making the operation simpler and more efficient. Meanwhile, it inherits the high-strength quality of Industrial Winches. The alloy body and precise gear structure ensure stability and reliability even under high-intensity use.
This Winch comes standard with a pull rod control box, roller cable guide and hooked steel wire rope and other Winch Accessories. From operation to traction, every detail demonstrates professionalism. The EWN series has a 30% improvement in service life, rope retraction speed and transmission efficiency compared with the conventional winch series. Whether it challenges the wilderness with Offroad Winches or cooperates with Hydraulic 4Wd Winches to deal with complex road conditions, it can stand out with outstanding performance. Choosing the 15,000 lbs EWN15000S electric vehicle winch means choosing a reliable guarantee for all-weather and all-scenario operations, ensuring that every rescue and operation is efficient and worry-free.
Features:
1.) Free spooling clutch
2.)Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
9.) SWR tensioner available
EWN15000
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.8 kW /3.8hp 24V:Input: 6.0 kW / 8.0hp;Output: 3.5 kW /4.7hp |
| Gear reduction ratio | 446:1 |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8. 5” (Ø88mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 15000(6804) | 19.7(6.0) | |
| 0 | 13.1(4.0) | 16.1(4.9) | 90 | 48 | 2 | 12000(5443) | 42.7(13.0) |
| 8000(3629) | 6.6(2.0) | 7.2(2.2) | 270 | 140 | 3 | 10100(4581) | 68.9(21.0) |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 320 | 180 | 4 | 8720(3955) | 83.7(25.5) |
| 12000(5443) | 4.6(1.4) | 5.9(1.8) | 380 | 200 | |||
| 15000(6804) | 4.3(1.3) | 5.6(1.7) | 450 | 250 | |||
| ITEM | EWN15000U | EWN15000S | ||
| Overall dimensions (L×W×H) | 23.3″×8.9″×10.3″(12V) 593mm×226mm×262mm(12V) | 23.3″×8.9″×12.4″(12V) 593mm×226mm×316mm(12V) | ||
| 22.7″×8.9″×10.3″(24V) 576mm×226mm×262mm(24V) | 22.7″×8.9″×12.4″(24V) 576mm×226mm×316mm(24V) | |||
| Net weight (Ibs) | 162.9 73.8 | 163.3 74.1 | ||
| (kgs) | ||||
Overall Dimensions 23.3″ x 8.9″ x 12.4″
(L x W x H) 593mm x 226mm x 316mm
Net Weight 74.1 KGS
