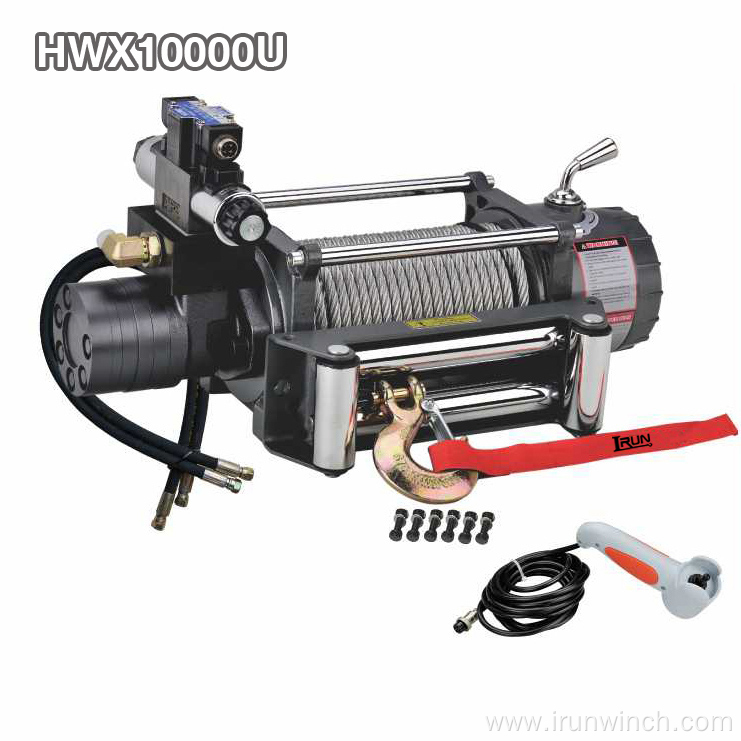

Model No.: HWX10000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Auto
| Package Type | : | EXPORT CARTON OR WOOD PALLET |
The file is encrypted. Please fill in the following information to continue accessing it
Our Hydraulic Winches provide you with a continous duty solution to your winch requirements.Designed with the thoughest commercial applicaitonin mind,all winches feature total reliability to hand sustained pulls. 10000 LBS Hydraulic Winch Item No.HWX10000A -10000 lbs Hydarulic Winch
Features:
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 10Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5) | 2.0 (0.6) |
| 4000(1814) | 3.8(551.1) | 2.6(10) | 3.6(1.1) |
| 6000(2722) | 7.2(1044.2) | 5.3(20) | 7.5(2.3) |
| 8000(3629) | 8.6(1247.3) | 9.2(35) | 13.1(4.0) |
| 10000(4536) | 10.0(1450.3) | 11.9(45) | 17.4(5.3) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 10000(4536) | 17.4(5.3) | |
| 2 | 7969(3615) | 39.4(12.0) | |
| 3 | 6624(3005) | 65.0(19.8) | |
| 4 | 5667(2571) | 85.3(26.0) |

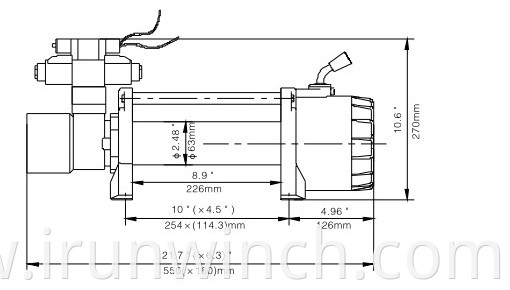

| ITEM | HWX10000A | HWX10000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm×217mm | 550mm×174mm×270mm | |
| Net weight (Ibs) | 91.0 | 91.0 | |
| (kgs) | 41.3 | 41.1 |
Overall Dimensions 21.6″ x 6.3″ x 8.7″
(L x W x H) 550mm x 160mm x 220mm
Net Weight 41.3 KGS
