Model No.: HWX8000A
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Atv/Utv, Auto
| Package Type | : | EXPORT CARTON OR WOOD CASE |
The file is encrypted. Please fill in the following information to continue accessing it

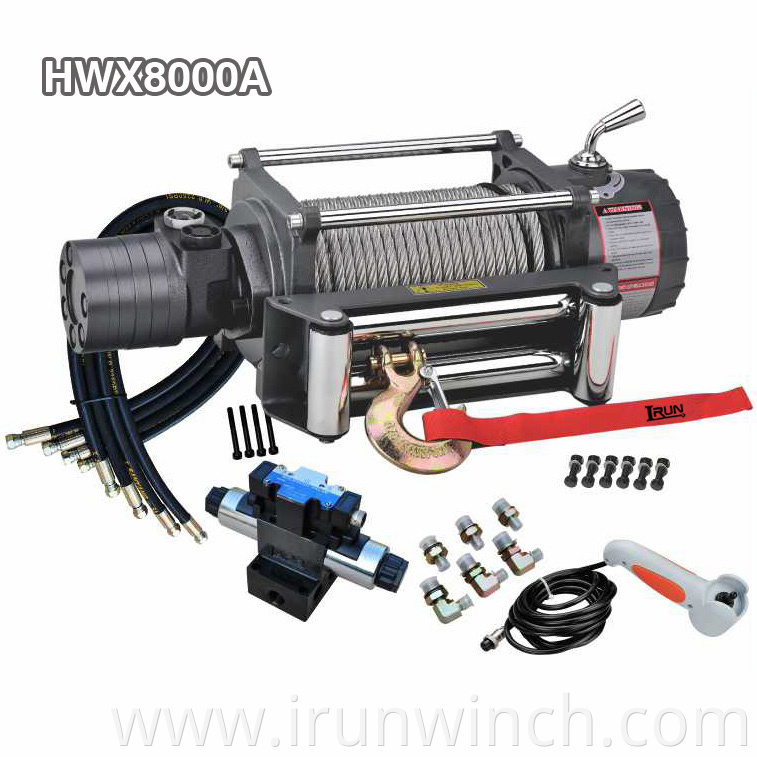

Our 4x4 Offroad hydraulic winch 8000 lbs Hydraulic Winch Item No. HWX8000A come with electric valve and rubber oil hose.
Our Hydraulic Winches provide you with a continous duty solution to your winch requirements.Designed with the thoughest commercial
Features:
1. Full stell reducer gear
2. Low oil flow stable working motor
3. Vehicle’s existing steering power pump drive
4. Sliding geaed ring clutch
5. Automatic screw cone braking action
6. Free spooling clutch
7. DC 12V or DC 24V Power drive optional
8. Wire remote control
9. Wireless remote control available
10. SWR tensioner available
11. Can not use it working as lift
HWX8000U/A
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 8.5Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5) | 1.6(0.5) |
| 4000(1814) | 3.6(522.1) | 2.6(10) | 3.6(1.1) |
| 6000(2722) | 6.5(942.7) | 5.3(20) | 7.5(2.3) |
| 8000(3629) | 8.5(1232.8) | 9.2(35) | 12.8(3.9) |
| 11.9(45) | 17.4(5.3) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 8000(3629) | 20.0(6.1) | |
| 2 | 6529(2962) | 44.3(13.5) | |
| 3 | 5515(2502) | 72.2(22.0) | |
| 4 | 4773(2165) | 95.1(29.0) |
| ITEM | HWX8000A | HWX8000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.5 | 87 | |
| (kgs) | 39.7 | 39.5 |

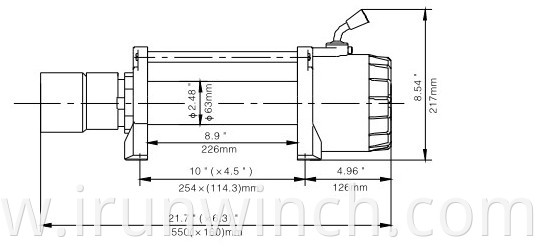

Overall Dimensions 21.6″ x 6.3″ x 8.54″
(L x W x H) 550mm x 160mm x 217mm
Net Weight 39.7 KGS
