Model No.: HWX8000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Atv/Utv, Auto
| Package Type | : | EXPORT CARTON OR WOOD CASE |
The file is encrypted. Please fill in the following information to continue accessing it
Our Hydraulic Winches provide you with a continous duty solution to your winch requirements.Designed with the thoughest commercial

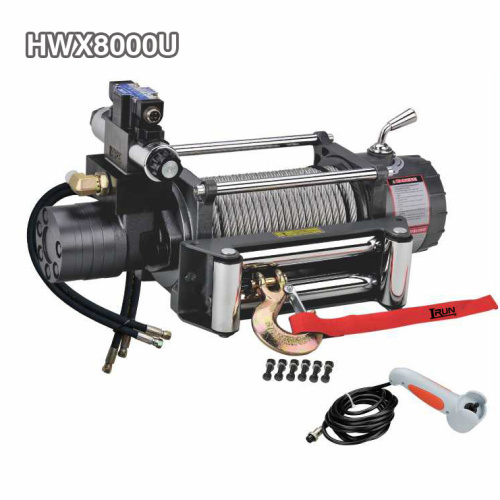

8000 lbs Hydraulic Winch Item No. HWX8000U come with electric valve installed on the winch motor and a set of hydraulic accesssories.
other outstanding features as following mentioned.
Features:
1.Full steel reducer gear
2.Low oil flow stable working motor
3. Patent two stage planetary gear reducer
4. Vehicle’s existing steering power pump drive
5. Automatic screw cone braking action
6. Sliding geared ring clutch
7. DC 12v or DC24v power drive optional
8. Wire remote control
9. Wireless remote control available
10. SWR tensioner available
11. Can not use it working as lift
HWX8000U
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 8.5Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5) | 1.6(0.5) |
| 4000(1814) | 3.6(522.1) | 2.6(10) | 3.6(1.1) |
| 6000(2722) | 6.5(942.7) | 5.3(20) | 7.5(2.3) |
| 8000(3629) | 8.5(1232.8) | 9.2(35) | 12.8(3.9) |
| 11.9(45) | 17.4(5.3) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 8000(3629) | 20.0(6.1) | |
| 2 | 6529(2962) | 44.3(13.5) | |
| 3 | 5515(2502) | 72.2(22.0) | |
| 4 | 4773(2165) | 95.1(29.0) |
| ITEM | HWX8000A | HWX8000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.5 | 87 | |
| (kgs) | 39.7 | 39.5 |

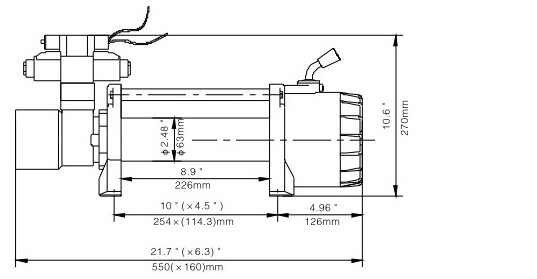

Overall Dimensions 21.6″ x 6.3″ x 10.6″
(L x W x H) 550mm x 160mm x 270mm
Net Weight 39.5 KGS
