Model No.: HWX9000A
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Atv/Utv, Auto
| Package Type | : | EXPORT CARTON OR PALLET PACKING |
The file is encrypted. Please fill in the following information to continue accessing it
Our Hydraulic Winches provide you with a continous duty solution to your winch requirements.Designed with the thoughest commercial applicaitonin mind,all winches feature total reliability to hand sustained pulls.
features as following mentioned.
Features:

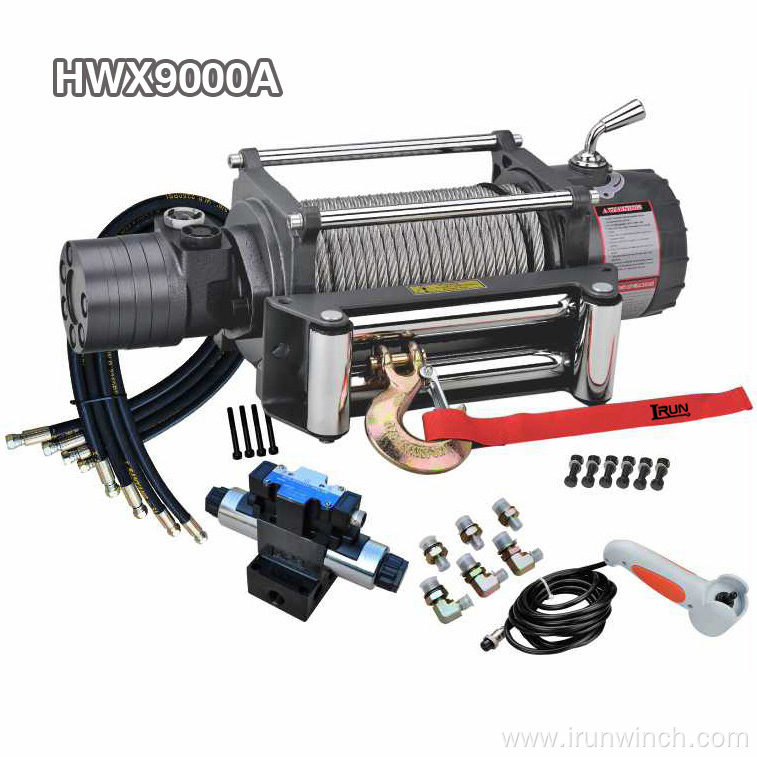

HWX9000A
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 9Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64 “×95′ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0(0) | 2.0(290.1) | 1.3(5) | 1.6(0.5) |
| 4000(1814) | 3.6(522.1) | 2.6(10) | 3.9(1.2) |
| 6000(2722) | 6.5(942.7) | 5.3(20) | 8.2(2.5) |
| 8000(3629) | 8.5(1232.8) | 9.2(35) | 14.1(4.3) |
| 9000(4082) | 9.0(1305.3) | 11.9(45) | 18.7(5.7) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 9000(4082) | 20.0(4.8) | |
| 2 | 7452(3380) | 44.3(11.1) | |
| 3 | 6358(2884) | 72.2(18.3) | |
| 4 | 5544(2515) | 95.1(29.0) |
| ITEM | HWX9000A | HWX9000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.2 | 87.7 | |
| (kgs) | 40.5 | 40.7 |

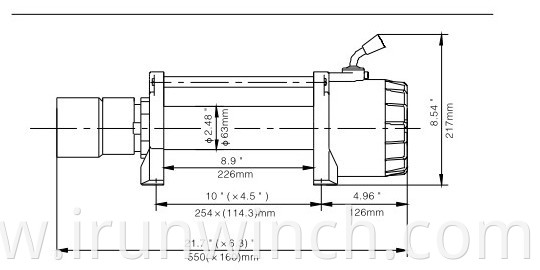

Overall Dimensions 21.6″ x 6.3″ x 8.54″
(L x W x H) 550mm x 160mm x 217mm
Net Weight 40.7 KGS
