| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean,Air |
| Port: | NINGBO,SHANGHAI |
Model No.: HWX9000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

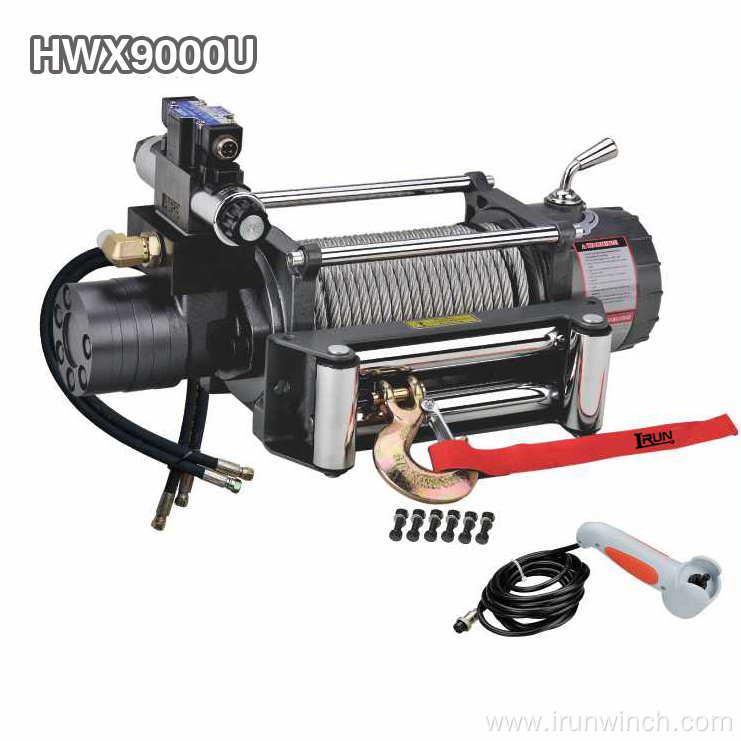

9000 lbs Hydraulic Winch Item No. HWX9000U Electric valve installed on the motor with following outstanding features.
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 9Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64 “×95′ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0(0) | 2.0(290.1) | 1.3(5) | 1.6(0.5) |
| 4000(1814) | 3.6(522.1) | 2.6(10) | 3.9(1.2) |
| 6000(2722) | 6.5(942.7) | 5.3(20) | 8.2(2.5) |
| 8000(3629) | 8.5(1232.8) | 9.2(35) | 14.1(4.3) |
| 9000(4082) | 9.0(1305.3) | 11.9(45) | 18.7(5.7) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 9000(4082) | 20.0(4.8) | |
| 2 | 7452(3380) | 44.3(11.1) | |
| 3 | 6358(2884) | 72.2(18.3) | |
| 4 | 5544(2515) | 95.1(29.0) |
| ITEM | HWX9000A | HWX9000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.2 | 87.7 | |
| (kgs) | 40.5 | 40.7 |

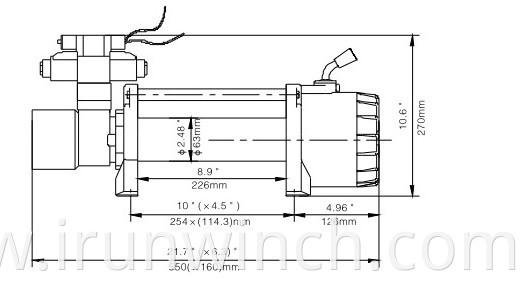

Overall Dimensions 21.6″ x 6.3″ x 10.6″
(L x W x H) 550mm x 160mm x 270mm
Net Weight 40.5 KGS
