Model No.: EWX6000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
It’s ideal for small car or Jeep. It comes from our winch recovery EWX Series with these advantages perfect efficiency,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Permanent magent motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available
9. SWR tensioner available

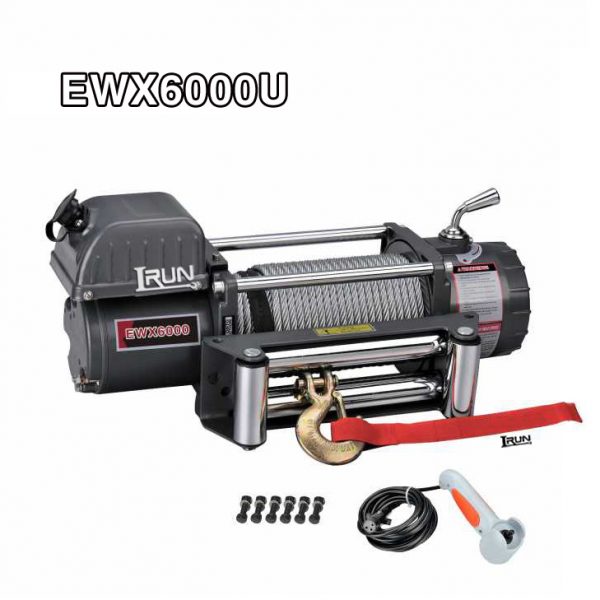

EWX6000U
| SPECIFICATION | |
| Rated line pull | 6000 lbs (2722kgs) |
| Motor: Series Wound | 12V:Input: 2.8 kW / 3.7hp; Output: 1. 6 kW / 2.1hp |
| 24V:Input: 2.9kW / 3.9hp; Output: 1.7 kW / 2.3hp | |
| Gear reduction ratio | 280:1 |
| Cable (Dia.× L) | Ø9/32 “×105 ‘ (Ø7.2mm×32m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 6000(2722) | 22.0(6.7) | |
| 0 | 12.8(3.9) | 14.1 (4.3) | 45 | 30 | 2 | 4979(2258) | 47.9(14.6) |
| 2000(907) | 8.2 (2.5) | 8.8 (2.7) | 100 | 45 | 3 | 4255(1930) | 77.1(23.5) |
| 4000(1814) | 7.2 (2.2) | 7.9 (2.4) | 150 | 80 | 4 | 3714(1685) | 105.0(32.0) |
| 6000(2722) | 5.9 (1.8) | 6.9 (2.1) | 230 | 120 | |||

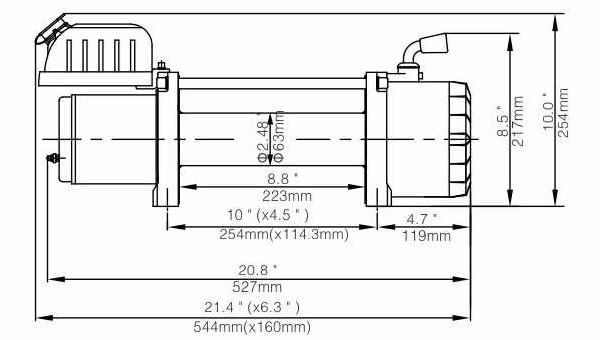

| ITEM | EWX6000U | EWX6000S | |
| Overall dimensions | 21.4″×6.3 “×10.0 “ | 20.8″×6.3 “×11.1 “ | |
| (L×W×H) | 544mm×160mm×254mm | 527mm×160mm×283mm | |
| Net weight (Ibs) | 66.1 | 67.2 | |
| (kgs) | 30.0 | 30.5 |
Overall Dimensions：21.4″ x 6.3″ x 10″
(L x W x H) 544mm x 160mm x 254mm
Net Weight：30.0 KGS
