Model No.: HWX20000YD
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Auto
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Our trailer / Industrial Winches is widely used in wreckers, trailers,
flat-plate haulage vehicles, engineering machineries, off-road
military vehicles and special vehicles.

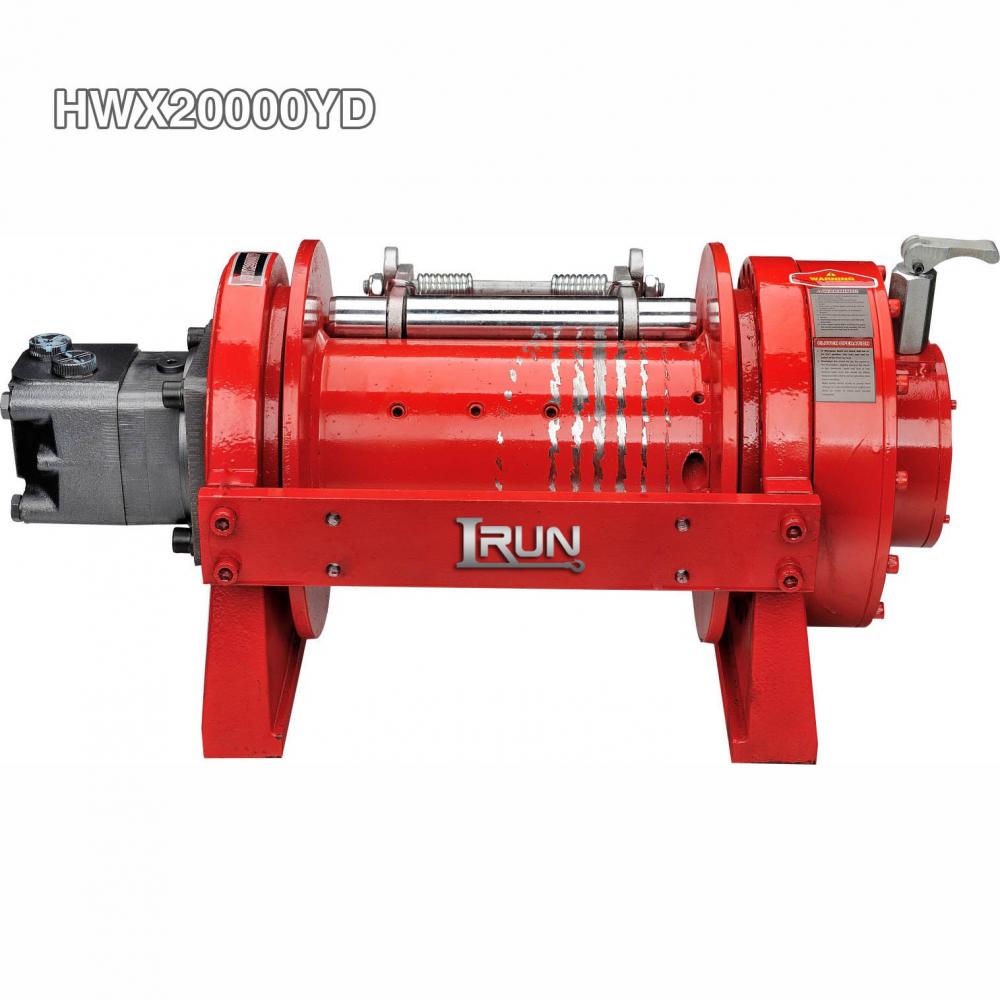

20000 lbs Hydraulic Winch Item No. HWX20000YD (Manual Cltuch,Single Speed)
It’s special design for industry use.
This winch has one speed at a 20,000lb pulling capacity with a manual clutch.
It`s equipped with Automatci screw multi-disc brake designed to
to hold the full-rated load, and high strength hardened two stage planetary gear reducer provides for relibality.
Besides Hook, Wire rop and SWR tensioner supplied.
Features:
1. Free steel reducer gear
2. Patent two stage planetary gear reducer
3. Patent clutch and speed shift structure
4. Automatic screw actions multi-disc brake
5. SWR tensioner supplied
6. air clutch or Air and manual mixed clutch, single speed optional
HWX20000YD
| SPECIFICATION | |
| Rated line pull | 20000 lbs (9072 kgs) |
| Motor: permanent magnet | 100ml/r |
| Oil Flow | 15~75L/min |
| Pressure | 17.5Mpa |
| Gear reduction ratio | 39:1 |
| Drum size (Dia.× L) | Ø5.4 “×10.2” (Ø138mm×260mm) |
| Mounting bolt pattern | 14.8 “×2.5 ” ×7.6 ” (375mm×64mm×192mm) 8-M14 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.5(362.6) | 4.0(15) | 5.9(1.8) |
| 4000(1814) | 4.2(609.1) | 7.9(30) | 11.8(3.6) |
| 8000(3629) | 8.5(1232.8) | 13.2(50) | 19.7(6.0) |
| 15000(6804) | 14.0(2030.5) | 15.9(60) | 23.6(7.2) |
| 20000(9072) | 17.5(2538.1) | 19.9(75) | 29.5(9.0) |

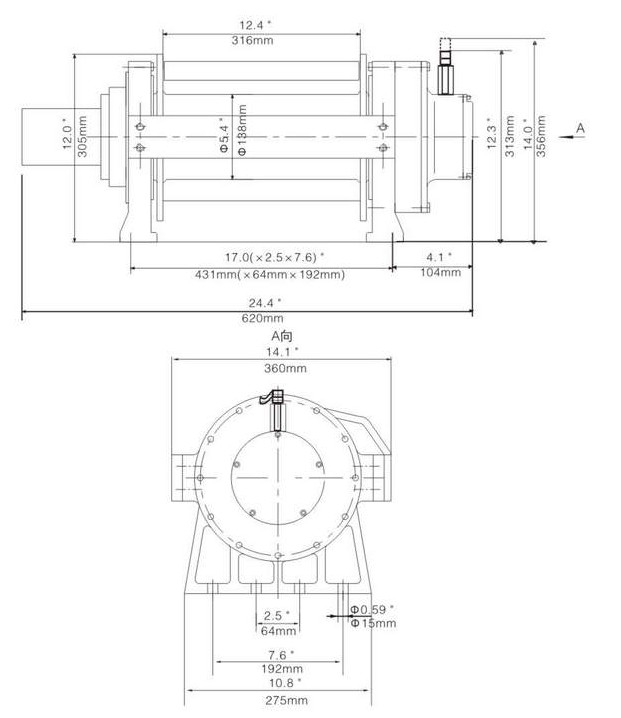

| ITEM | HWX20000YD | ||
| Overall dimensions | 22.2″×15.4″×14.0″ | ||
| (L×W×H) | 564mm×390mm ×356mm | ||
| Net weight (Ibs) | 238 | ||
| (kgs) | 108 |
