Model No.: HWN11000YD
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Auto
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

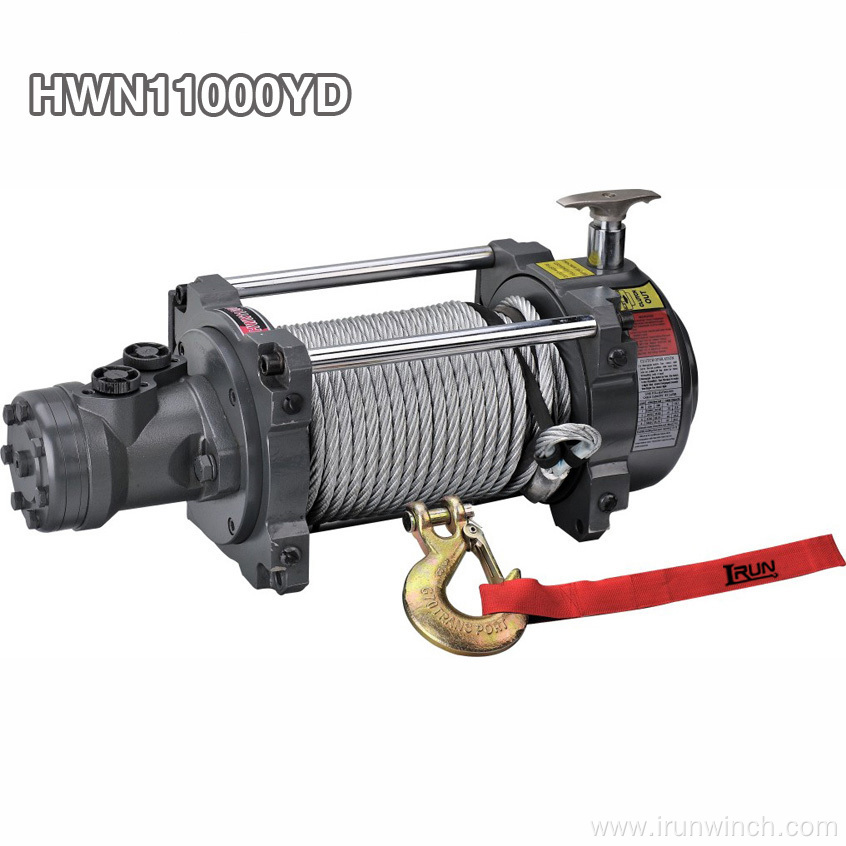

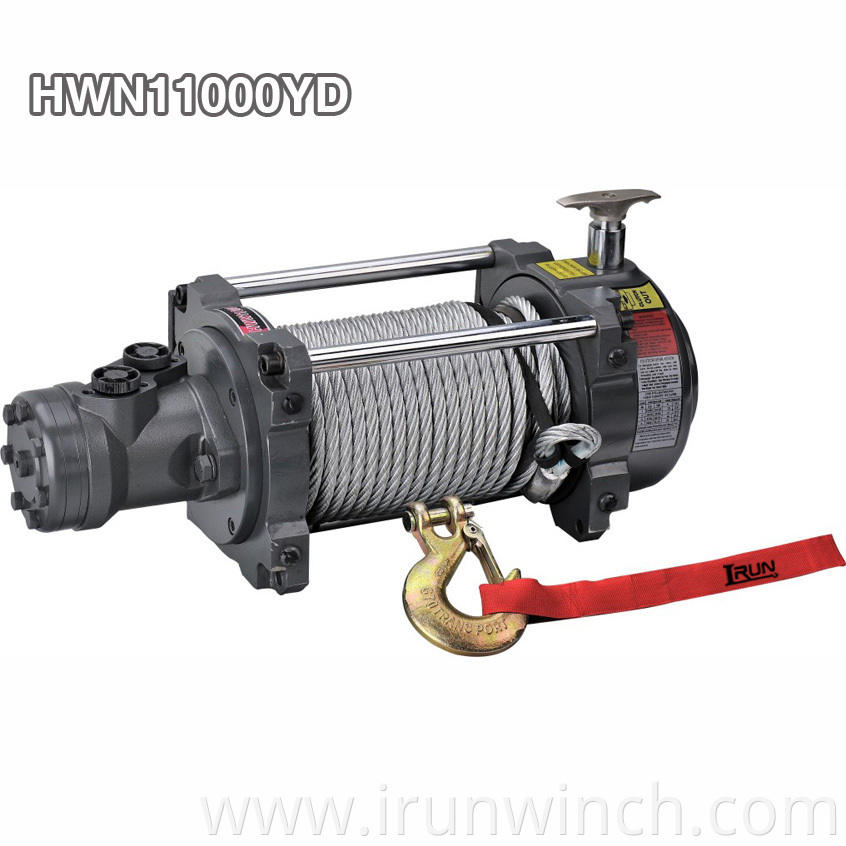

11000 lb Hydraulic Winch for trucks No.HWN10000YD
Powerful workhose with 11000 lbs of pulling power.
Pefect for tow,utility and trailer applicatons.
Patent hardened steel two stage planetary gear reducer provides
Automatic braking action provides dependable control
Meets SAEJ706 and CE standards
Including with hook,wire rope and SWR tensioner.
Roller fairlead sold separately.
FEATURES:
The winch clutch can be available 3 types: Manual, air clutch or Manual & Air mixed Clutch
ITEM NO.HWN11000YD (Manual Clutch)
ITEM NO.HWN11000Y1D (AIR Clutch)
ITEM NO.HWN11000Y2D (Manual and Air mixed Clutch)
HWN11000YD/Y1D/Y2D
| SPECIFICATION | |
| Rated line pull | 11000 lbs (4990 kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 15~45L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | 25.5:1 |
| Cable (Dia.× L) | Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 2.3 (0.7) |
| 3000(1361) | 4.5(652.7) | 2.6(10.0) | 4.6(1.4) |
| 6000(2722) | 6.8(986.2) | 5.3(20.0) | 8.9(2.7) |
| 9000(4082) | 9.0(1305.3) | 9.2(35.0) | 15.1(4.6) |
| 11000(4990) | 12.5(1812.9) | 10.6(40.0) | 17.4(5.3) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) |
| 1 | 11000(4990) | 16.4 (5.0) |
| 2 | 8695(3944) | 37.2(11.3) |
| 3 | 7189(3261) | 60.9(18.6) |
| 4 | 6128(2779) | 83.7(25.5) |
| ITEM | HWN11000YD | HWN11000Y1D | HWN11000Y2D |
| Overall dimensions | 20.4″×9.6″×9.7″ | 20.4″×9.6″×8.2″ | 20.4″×9.6″×11.5″ |
| (L×W×H) | 519mm×235mm×246mm | 519mm×235mm×208mm | 519mm×235mm×291mm |
| Net weight (Ibs) | 117 | 117 | 117 |
| (kgs) | 53 | 53 | 53 |

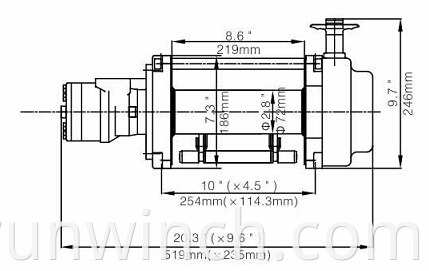

HWN11000YD

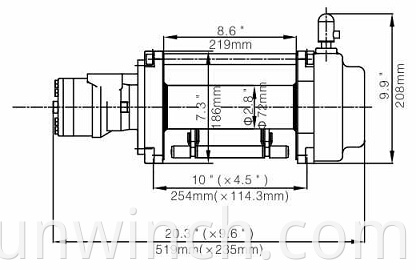

HWN11000Y1D

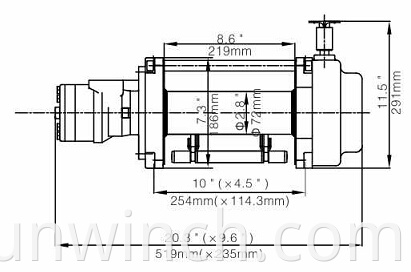

HWN11000Y2D
Our trailer /Industrail Winches is widely used in wreckers, trailers,
flat-plate haulage vehicles, engineering machineries, off-road
military vehicles and special vehicles.
