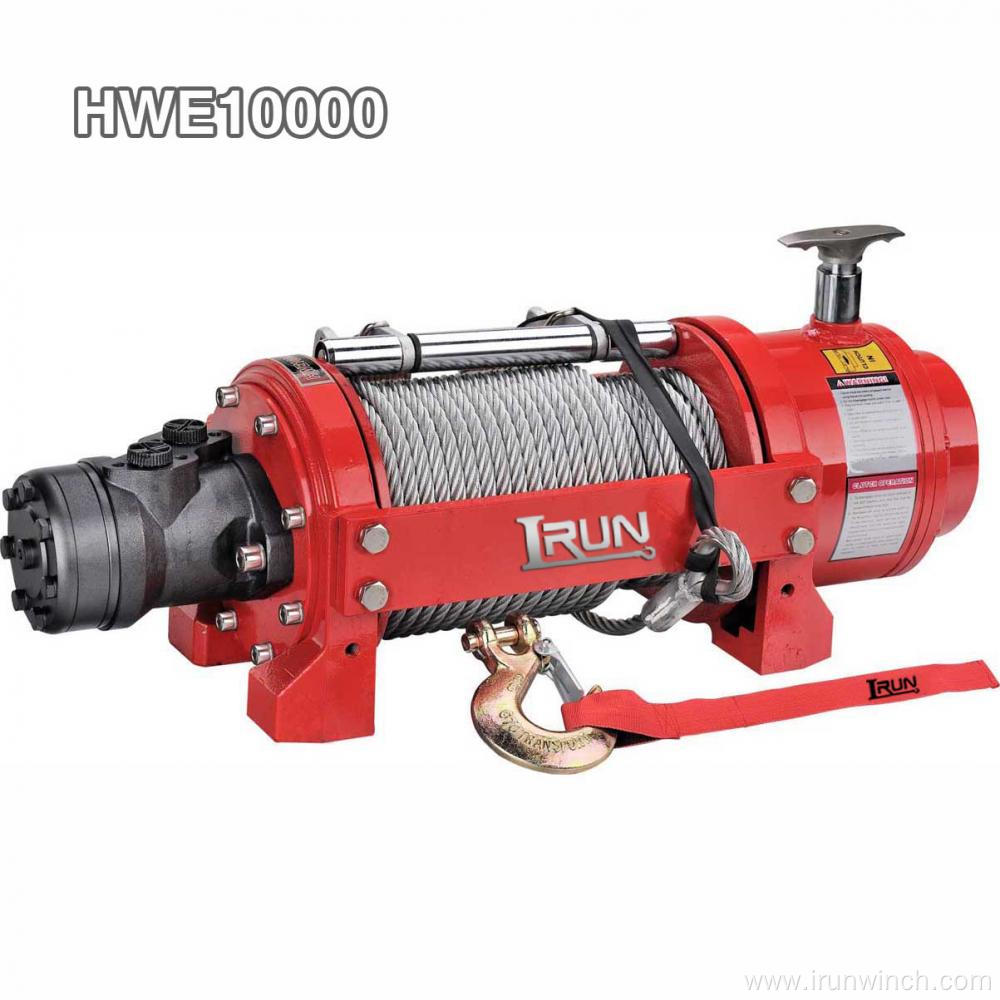

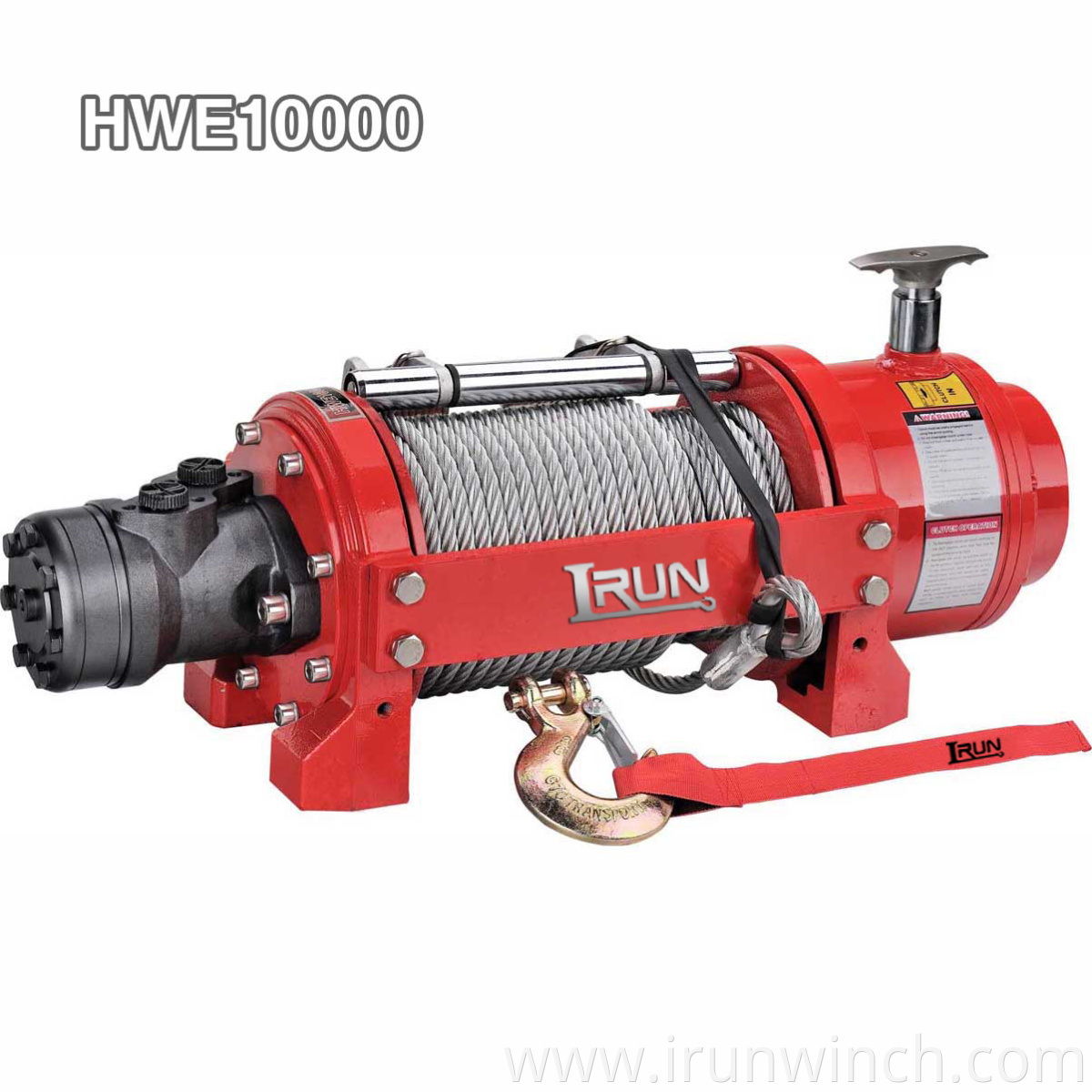

HWE10000
Our Industrial Winch NO. HWE1000 is a super powerful Hydraulic Winch to
meet European EN standard. Pawl braking system placed within the gear
reducer ensure total reliability and delivers convenient maintenance
in engineering application.
Features:
1.) Planetary gear, efficient transmission with continuous work
2.) Patent ratchet brake inside gearbox
3.) Overhead type clutch operation, simple and reliable
4.) Drum will not become hot after long time use
5.) Special design for Industry use
HWE10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: permanent magnet | 100.8ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 15Mpa |
| Gear reduction ratio | 16:1 |
| Cable (Dia.× L) | Ø13/32″×83.7′ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø4.0 “×10.0” (Ø102mm×253mm) |
| Mounting bolt pattern | 14.7 “×4.5 ” (374.2mm×114.3mm) 11.5 “×6.7” (291.6mm×171.2mm) 8-M10 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5) | 3.0(0.9) |
| 4000(1814) | 5.6(812.3) | 2.6(10) | 5.9(1.8) |
| 6000(2722) | 9.4(1363.5) | 5.2(20) | 11.8 (3.6) |
| 8000(3629) | 12.2(1769.6) | 10.4(40) | 23.6(7.2) |
| 10000(4536) | 14.8(2146.7) | 15.6(60) | 36.7(11.2) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 10000(4536) | 23.0(7.0) | |
| 2 | 7355(3336) | 49.2(15.0) | |
| 3 | 6780(3075) | 78.7(24.0) | |
| 4 | 5711(2591) | 86.9(26.5) |
| ITEM | HWE10000 | ||
| Overall dimensions | 25.3″×9.5″×10.0″ | ||
| (L×W×H) | 643mm×241mm ×255mm | ||
| Net weight (Ibs) | 143 | ||
| (kgs) | 65 |
