Model No.: HWP10000YD
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Auto
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

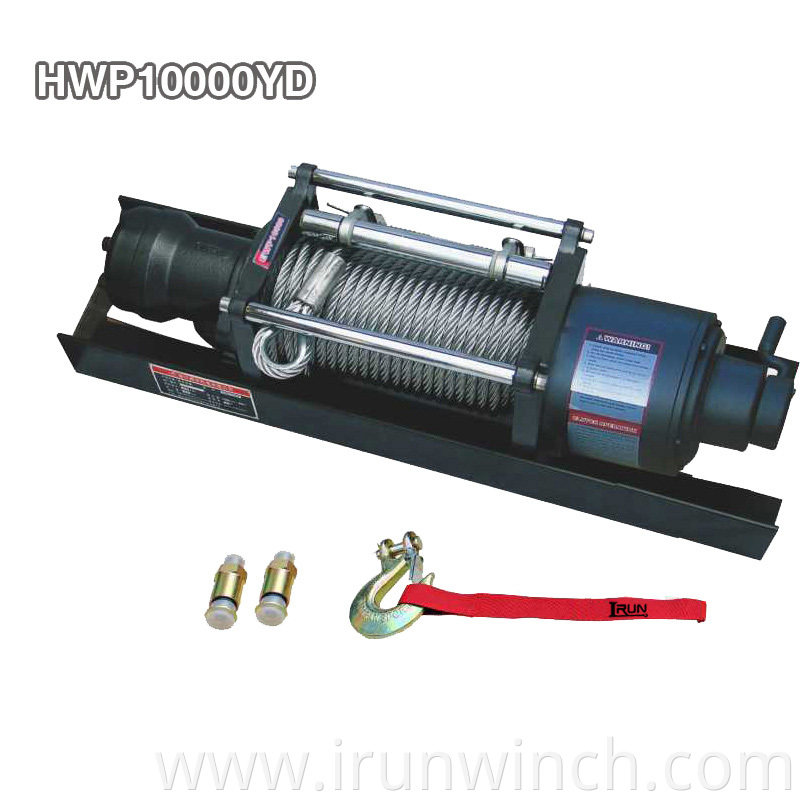

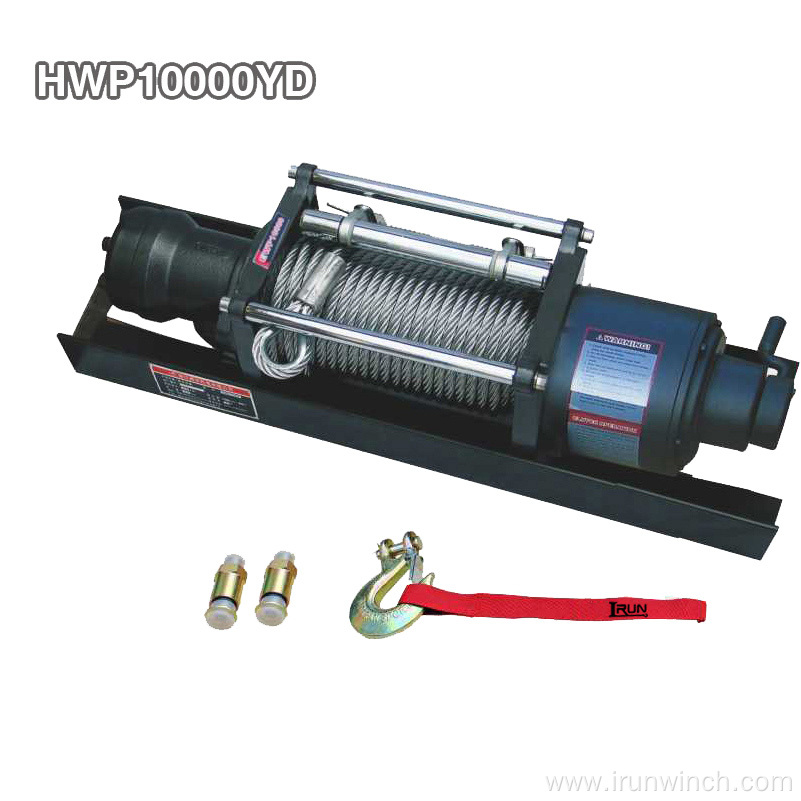

2 Speed Hydraulic Industrial Winch Item NO. HWP10000YD pulling capacity up to 10000 lbs
Is ideal for wrecker, tow turck,utility and trailer applications with features as following:
1.Full steel reducer gear
2.Patent design two stage planetary gear reducer
3.Two speed and clutch integrate with one handgrip
4.Patent clutch and speed shift structure
5.Clutch and two speed gear actions auto engagement
6.Steel winch bracket
7.Automatic screw cone braking action
8.SWR tensioner supplied
HWP10000YD
| SPECIFICATION | |
| Rated line pull | 10000lbs(4536kgs) |
| Motor: permanent magnet | 50ml/r |
| Oil Flow | 15~40L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | High speed: 6:1;Low speed: 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 9″ (Ø63mm×223mm) |
| Mounting bolt pattern | 22.4 “×20.5 “×4.5 ” (570mm×520mm×114.3mm) 4-M10 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) | ||
| Low speed | High speed | Low speed | High speed | ||
| 0 | 0 | 2.0(290.1) | 4.0(15) | 7.2(2.2) | 41.7(12.7) |
| 4000(1814) | 696(316) | 3.9(565.6) | 6.6(25) | 12.5(3.8) | 72.5(22.1) |
| 6000(2722) | 1043(473) | 7.5(1087.7) | 9.2(35) | 18.0(5.5) | 103.0(31.4) |
| 8000(3629) | 1391(631) | 10.5(1522.8) | 10.6(40) | 20.3(6.2) | 117.5(35.8) |
| 10000(4536) | 1739(789) | 12.5(1812.9) | |||
| Layer of cable | Rated line pull Per layer lbs(kgs) | Total rope on drum ft (m) | White oil flow10L/min | |
| Low speed | High speed | |||
| 1 | 10000(4536) | 17.4(5.3) | 20.3(6.2) | 117.5(35.8) |
| 2 | 7969(3615) | 39.4(12.0) | 26.2(8.0) | 149.9(45.7) |
| 3 | 6624(3005) | 65.0(19.8) | 31.8(9.7) | 182.7(55.7) |
| 4 | 5667(2571) | 85.3(26.0) | 37.4(11.4) | 215.6(65.7) |
| ITEM | HWP10000YD | ||
| Overall dimensions | 23.6″×8.3″ × 7.5″ | ||
| (L×W×H) | 600mm×210 mm×191mm | ||
| Net weight (Ibs) | 99 | ||
| (kgs) | 45 |
