Model No.: EWG8000F
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

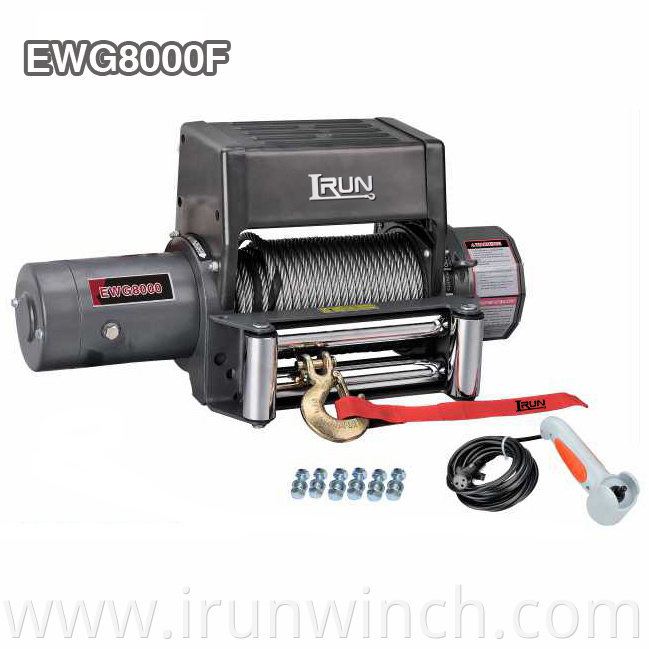

8000lb Electric Winch for Jeep & SUV
EWG8000F
8000 lbs Electric Recovery Winch with a control box tied on winch bar Item EWG8000F. It’s your wise option on high performance 8000 pounds electric recovery winch .It’s as a 8000 pounds repersentive winch of EWG Series with these advantages perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound | 12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp 24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 72.5 32.8 | 72.9 33.1 | 73.8 33.5 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight：33.5 KGS
