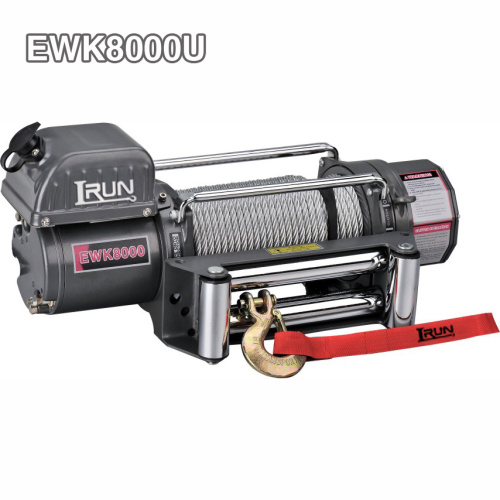

Model No.: EWK8000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Although the EWK8000U is the first-generation product, it demonstrates extraordinary strength in various scenarios with a powerful pulling force of 8,000 pounds. When the off-road vehicle enters the wild and encounters complex terrains such as steep slopes and mud pits, it immediately transforms into a reliable Off-Road Winches. With stable traction, it helps the vehicle overcome obstacles and head towards the unknown distance. Once the vehicle gets into trouble, it can quickly switch to the professional Recovery Winches, apply precise force, rescue the trapped vehicle from the dangerous situation, and safeguard the safety of every off-road journey.
After long-term market testing, EWK8000U has always rewarded users with stable quality and excellent performance. Coupled with its highly attractive price, it has become a model of high cost performance. It is not only a winch, but also a reliable guarantee. Choosing 8000 lbs Electric Winch Item No. EWK8000U means choosing a towing solution that combines classic quality with an affordable price. Whether it's off-road exploration, emergency rescue, or industrial operations, it can perform outstandingly to solve your problems and make every mission and journey successful.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp 24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||
| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions | 21.9″×7.1″×9.6″ 555mm×180mm×243mm | 21.2″×7.1″×11.7″ 538mm×180mm×297mm | 21.2″×7.1″×10.6″ 538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 63.5 28.8 | 64.2 29.1 | 68.1 31.0 |
| (kgs) |
