Model No.: EWG9000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
9000 lbs Electric Winch Item No. EWG9000S is ideal for offroad car or Jeep. We designed the conrol box installed on the winch motor. It has features with good performance,stable quality and reasonal prices.
In the professional field of Winches, Hydraulic Winches dominates heavy-duty scenarios with its powerful Hydraulic power, Industrial Winches maintains production line operations with industrial-grade architecture, and Hydraulic 4wd Winches is deeply customized for four-wheel drive systems. Our 9000LB 4x4 Electric Winch, as the ideal blend of Off-Road Winches and Recovery Winches, precisely fills the gap in off-road rescue needs.
This 9,000-pound 4x4 electric winch, equipped with a high-torque motor and a precise gear set, has a powerful pulling force of 9,000 pounds, which is sufficient to handle situations where vehicles are stuck in mud, sand, etc. Whether it is unexpected situations during off-roading in the wild or light towing operations in engineering scenarios, it can efficiently complete tasks. Compared with the complex system of Hydraulic Winches, it is more convenient to operate. Compared with the heavy-duty design of Industrial Winches, it is more suitable for vehicle mobile rescue scenarios.
The standard control box, wear-resistant steel cable and roller rope guide it is equipped with, combined with a variety of Winch Accessories such as wireless remote control modules and synthetic fiber cables, can further expand its functions and enhance safety. From self-rescue and mutual rescue during extreme off-roading to emergency rescue on urban roads, the 9000LB 4x4 Electric Winch, with its reliable performance and flexible adaptability, has become a trustworthy and capable assistant for professional rescue personnel and off-roading enthusiasts.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG9000S
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082 kgs) |
| Motor: permanent magnet | 12V:Input: 3.4kW / 4.6hp; Output: 2.7kW / 3.6hp 24V:Input: 4.3kW / 5.8hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9000(4082) | 19.7 (6.0) | |
| 0(0) | 17.1(5.2) | 23.0(7.0) | 80 | 50 | 2 | 7350 (3334) | 42.7 (13.0) |
| 2000(907) | 10.8(3.3) | 14.8(4.5) | 120 | 75 | 3 | 6200(2812) | 68.9(21.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 4 | 5400 (2449) | 95.1(29.0) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 220 | 145 | |||
| 9000(4082) | 4.9(1.5) | 6.6 (2.0) | 280 | 180 | |||

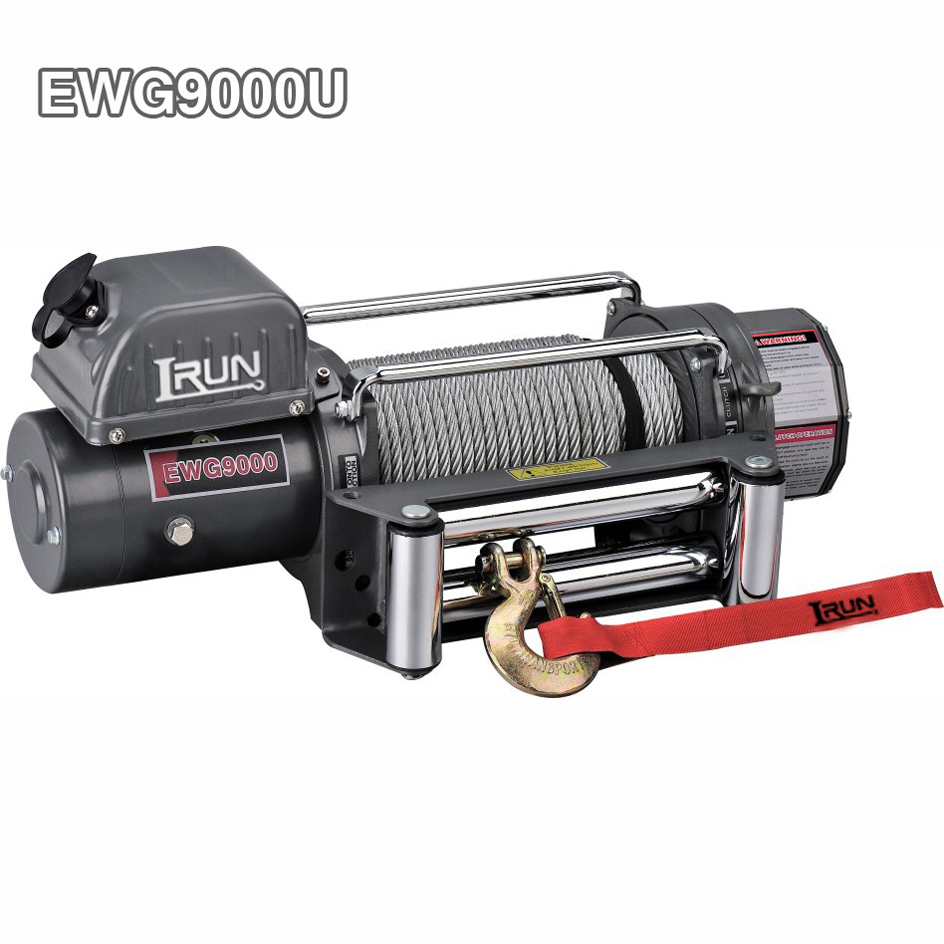

| ITEM | EWG9000U | EWG9000S | EWG9000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 11.7″
(L x W x H) 570mm x 180mm x 297mm
Net Weight： 34.0 KGS
