Model No.: EWG9000F
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

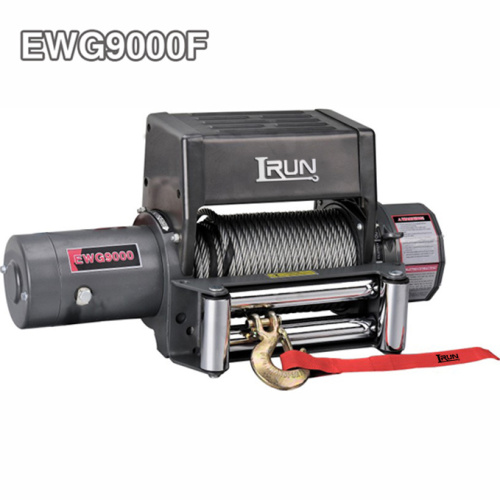

Our Item No.EWG9000F – 9000 lbs Electric Winch belongs to our first generation of Series Wound Motor 4×4 Recovery Winch. It has the stand-up control box style.It’s popular in our clients becuase of reasonable prices and good performance and ideal for Offroad car or Jeep.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG9000F
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082 kgs) |
| Motor: Series Wound | 12V:Input: 3.4kW / 4.6hp; Output: 2.7kW / 3.6hp 24V:Input: 4.3kW / 5.8hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9000(4082) | 19.7 (6.0) | |
| 0(0) | 17.1(5.2) | 23.0(7.0) | 80 | 50 | 2 | 7350 (3334) | 42.7 (13.0) |
| 2000(907) | 10.8(3.3) | 14.8(4.5) | 120 | 75 | 3 | 6200(2812) | 68.9(21.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 4 | 5400 (2449) | 95.1(29.0) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 220 | 145 | |||
| 9000(4082) | 4.9(1.5) | 6.6 (2.0) | 280 | 180 | |||
| ITEM | EWG9000U | EWG9000S | EWG9000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight： 34.2 KGS
