Model No.: EWG9000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

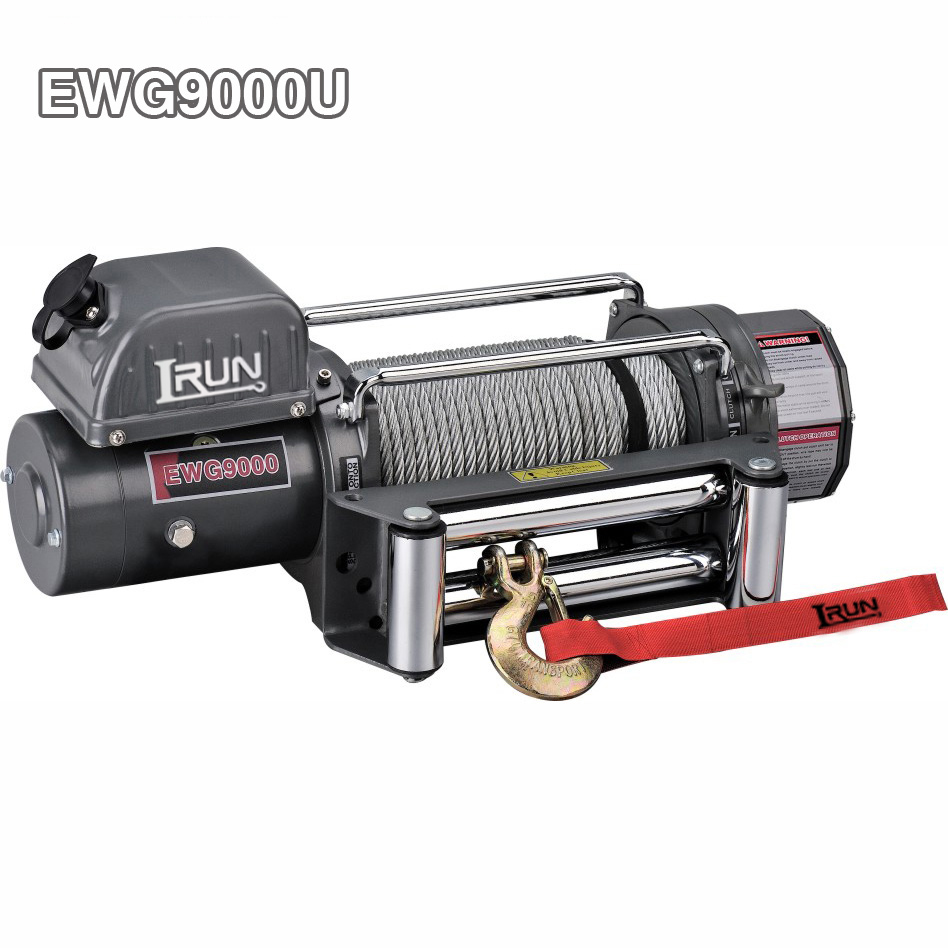

9000 lbs Electric Winch Item No. EWG9000U is ideal for offroad car or Jeep. We designed the conrol box installed on the winch motor. It has features with good performance,stable quality and reasonal prices.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG9000U
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082 kgs) |
| Motor: permanent magnet | 12V:Input: 3.4kW / 4.6hp; Output: 2.7kW / 3.6hp 24V:Input: 4.3kW / 5.8hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9000(4082) | 19.7 (6.0) | |
| 0(0) | 17.1(5.2) | 23.0(7.0) | 80 | 50 | 2 | 7350 (3334) | 42.7 (13.0) |
| 2000(907) | 10.8(3.3) | 14.8(4.5) | 120 | 75 | 3 | 6200(2812) | 68.9(21.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 4 | 5400 (2449) | 95.1(29.0) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 220 | 145 | |||
| 9000(4082) | 4.9(1.5) | 6.6 (2.0) | 280 | 180 | |||
| ITEM | EWG9000U | EWG9000S | EWG9000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
Net Weight： 33.8 KGS
