Product Description

Product Attributes

Model No.: EWT4500D

Brand: OEM ORDER ACCEPTABLE

Power Source: Electric

Voltage: 24v

Packaging & Delivery

Package Type

EXPORT CARTON

The file is encrypted. Please fill in the following information to continue accessing it

Heavy Duty Truck Winch



Product Description

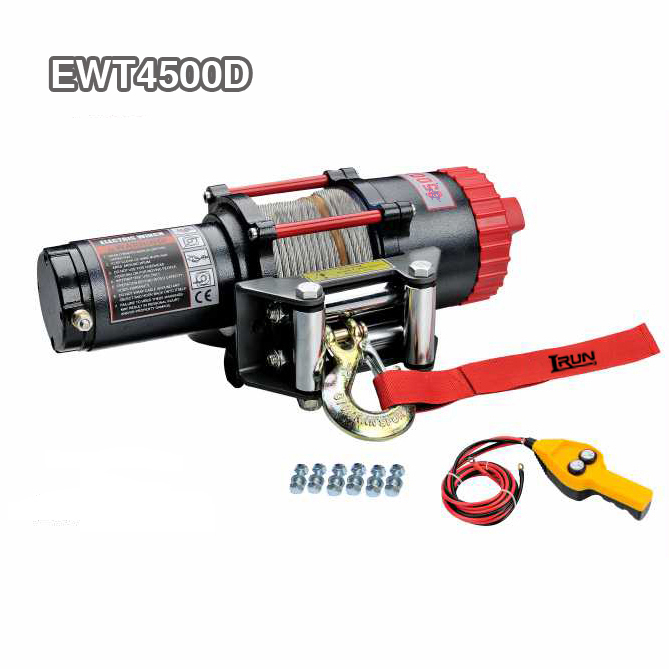

Extreme-Duty 4500LB UTV/Atv Winch

When UTV/ATV ventures into the uninhabited wild secret realm, the Extreve-Duty 4500LB Winch instantly awakens into a fearless Off-Road Winches. With an astonishing pulling force of 4,500 LB, it's like injecting a steel heart into the vehicle. Whether it's climbing nearly vertical rock slopes or traversing swamps with undercurrents, it can easily drag the vehicle through numerous obstacles with its powerful performance, making the off-road journey no longer insurmountable. Once the vehicle encounters danger and gets stuck in a difficult situation, this winch immediately transforms into a professional Recovery Winches. With its precise and stable pulling force output, it acts like an experienced rescue expert, quickly rescuing the trapped vehicle from the desperate situation and turning danger into safety.

Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control

EWT4500

SPECIFICATION
Rated line pull	4500 lbs (2041 kgs)
Motor: permanent magnet	12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp 24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp

Gear reduction ratio	166:1
Cable (Dia.× L)	Ø 15/64″×47.6′ (Ø6.0mm×14.5m)
Drum size (Dia.× L)	Ø 2.0″×4.9″ (Ø50.4mm×125 mm)
Mounting bolt pattern	6.6″×3.0″ (168mm×76.2 mm) 4-M8

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	4500(2041)	10.8(3.3)
0	12.5(3.8)	14.4(4.4)	28	14	2	3833(1740)	24.0(7.3)
1000(454)	8.5(2.6)	11.1(3.4)	140	50	3	3338(1515)	39.4(12.0)
2500(1135)	6.2(1.9)	8.8(2.7)	170	90	4	2957(1342)	47.6(14.5)
4500(2041)	5.2(1.6)	4.6(1.4)	220	110

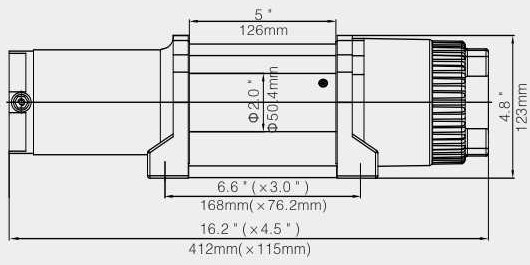

ITEM	EWT4500D	EWT4500A	EWT4500U
Overall dimensions	16.2″×4.5″×4.8″ 412mm×115mm×123 mm	16.2″×4.5″×4.8″ 412mm×115mm×123 mm	16.3″×4.5″×6.6″ 413mm×125mm×168mm
(L×W×H)
Net weight (Ibs)	29.8 13.5	32.4 14.7	32.4 14.7
(kgs)
