Model No.: EWT2500U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

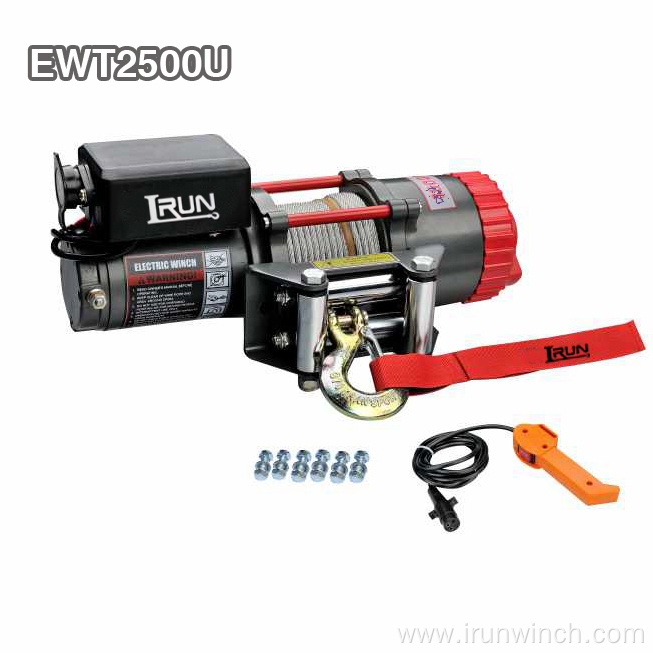

Electric ATV winch 2500lb Item No.EWT2500U
Features:
1. Full steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
EWT2500
| SPECIFICATION | |
| Rated line pull | 2500 lbs (1134 kgs) |
| Motor: permanent magnet | 12V:Input: 1.8kW / 2.4hp; Output: 0.8 kW / 1.1hp |
| 24V:Input: 1.9kW / 2.6hp; Output: 0.9 kW / 1.2hp | |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 3/16″×45.9′ (Ø4.8mm×14.0m) |
| Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWT2500D | EWT2500A | EWT2500U |
| Overall dimensions | 14.3″×4.5″×4.8″ | 14.3″×4.5″×4.8″ | 14.3″×4.5″×6.3″ |
| (L×W×H) | 368mm×115mm×123mm | 368mm×115mm×123mm | 372mm×115mm×160mm |
| Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
| (kgs) | 11.2 | 12.3 | 12.2 |

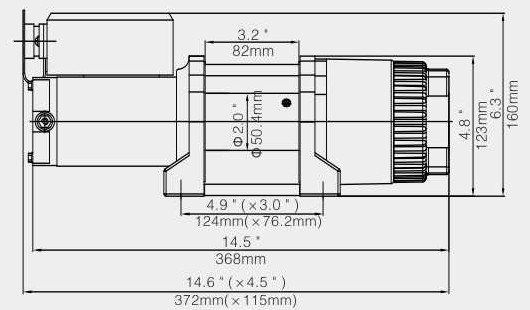

Overall dimensions: 14.6″x4.5″x6.3″
(LxWxH) 372mmx115mmx160mm
Net Weight: 12.2 kgs
