Model No.: EWT4500A
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

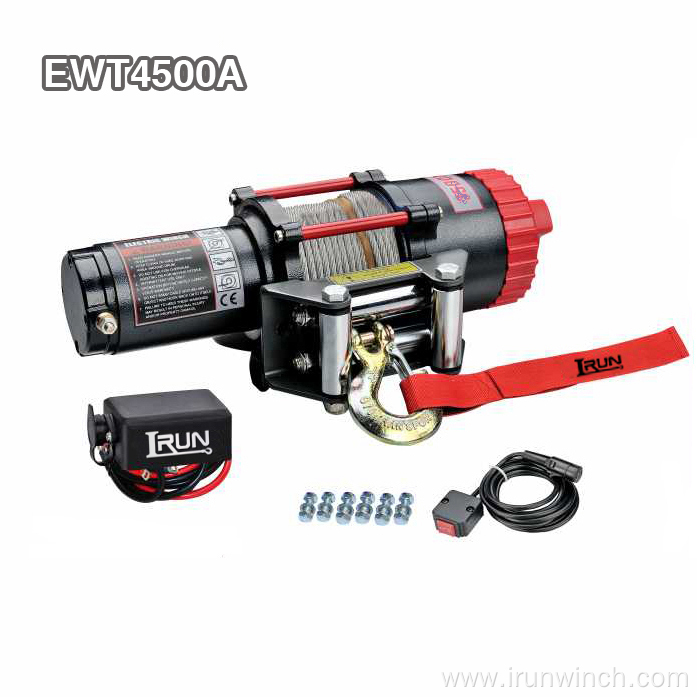

Electric Winch 4500lb Item No.EWT4500A
Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
EWT4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp 24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø 2.0″×4.9″ (Ø50.4mm×125 mm) |
| Mounting bolt pattern | 6.6″×3.0″ (168mm×76.2 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 10.8(3.3) | |
| 0 | 12.5(3.8) | 14.4(4.4) | 28 | 14 | 2 | 3833(1740) | 24.0(7.3) |
| 1000(454) | 8.5(2.6) | 11.1(3.4) | 140 | 50 | 3 | 3338(1515) | 39.4(12.0) |
| 2500(1135) | 6.2(1.9) | 8.8(2.7) | 170 | 90 | 4 | 2957(1342) | 47.6(14.5) |
| 4500(2041) | 5.2(1.6) | 4.6(1.4) | 220 | 110 | |||
| ITEM | EWT4500D | EWT4500A | EWT4500U |
| Overall dimensions | 16.2″×4.5″×4.8″ 412mm×115mm×123 mm | 16.2″×4.5″×4.8″ 412mm×115mm×123 mm | 16.3″×4.5″×6.6″ 413mm×125mm×168mm |
| (L×W×H) | |||
| Net weight (Ibs) (kgs) | 29.8 13.5 | 32.4 14.7 | 32.4 14.7 |
Overall dimensions: 16.2″x4.5″x4.8″
(LxWxH) 412mmx125mmx123mm
Net Weight: 14.7 kgs
