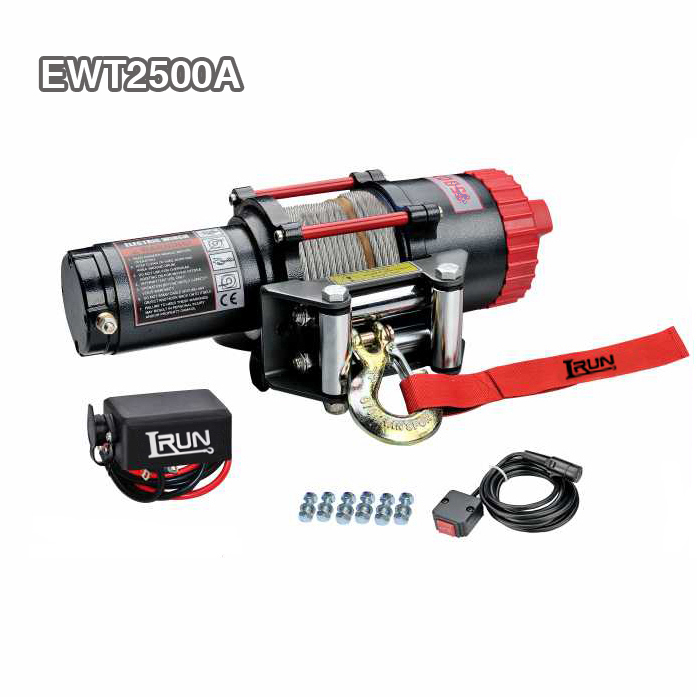

Model No.: EWT2500A
Brand: OEM ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
The 2500LB Electric Winch, which is specially designed for ATV off-road rescue, perfectly combines the adventurous spirit of Off-Road Winches with the rescue mission of Recovery Winches, paired with professional Winch Accessories. Become a reliable partner for all-terrain vehicles traveling in the wilderness.
When the ATV drives into the thorny wilderness, the Off-Road 2500LB Electric Winch immediately transforms into the fearless Off-road Winches. With a powerful pulling force of 2500LB, it's like equipping the ATV with a "power engine". Facing rough mountain roads and soft sand, it can easily tow the vehicle over obstacles, making every off-road exploration full of confidence. When an accident strikes and the vehicle gets stuck in the mud and cannot extricate itself, it quickly switches to the professional Recovery Winches mode. The precise and stable pulling force output is like a "lifeline" in the wilderness, methodically rescuing the trapped ATV from the desperate situation, turning the critical moment into a wonderful chapter in the off-road story.
Features:
1. Full steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
EWT2500
| SPECIFICATION | |
| Rated line pull | 2500 lbs (1134 kgs) |
| Motor: permanent magnet | 12V:Input: 1.8kW / 2.4hp; Output: 0.8 kW / 1.1hp |
| 24V:Input: 1.9kW / 2.6hp; Output: 0.9 kW / 1.2hp | |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 3/16″×45.9′ (Ø4.8mm×14.0m) |
| Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWT2500D | EWT2500A | EWT2500U |
| Overall dimensions | 14.3″×4.5″×4.8″ | 14.3″×4.5″×4.8″ | 14.3″×4.5″×6.3″ |
| (L×W×H) | 368mm×115mm×123mm | 368mm×115mm×123mm | 372mm×115mm×160mm |
| Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
| (kgs) | 11.2 | 12.3 | 12.2 |

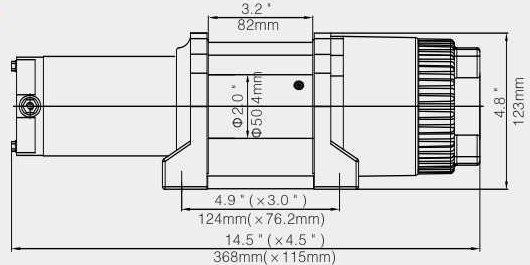

Overall dimensions: 14.3″x4.5″x4.8″
(LxWxH) 368mmx115mmx123mm
Net Weight: 12.3 kgs
