Model No.: HWN15000YD
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Auto
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Industrail Hydraulic Winch 15000 lb for truck or trailer ITEM NO.HWN15000YD
The winch has 15000 lb pulling capacity.
The winch is equipped with a Heavy duty automatic bracking action for safe operation,and a patent hardened steel two stage planetar gear reducer provides high efficient transmisson. Each winch come along with wire rope,installation plate and SWR tensioner.
Note: Roller failread sold sperately
The winch clutch can be available 3 types: Manual, air clutch or Manual & Air mixed Clutch
ITEM NO.HWN15000YD (Manual Clutch)
ITEM NO.HWN15000Y1D (AIR Clutch)
ITEM NO.HWN15000Y2D (Manual and Air mixture Clutch)
FEATURES:
1.) Free spooling clutch: Manual, Air Clutch or M and A
2.) Automatic braking action
3.) Patent two stage planetary gear reducer
4.) Specially designed shape for convenience of installation and good looking
5.) For engineering use available
6.) SWR tensioner available
7.) Can not use it working as lift
HWN15000YD/Y1D/Y2D
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor: permanent magnet | 80ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 13Mpa |
| Gear reduction ratio | 33.4:1 |
| Cable (Dia.× L) | Ø15/32″×87 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8.5” (Ø89mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 1.6 (0.5) |
| 5000(2268) | 4.3(623.7) | 2.6(10.0) | 3.3(1.0) |
| 10000(4536) | 8.7(1261.8) | 5.3(20.0) | 6.6(2.0) |
| 12000(5443) | 10.0(1450.3) | 7.9(30.0) | 9.8(3.0) |
| 15000(6804) | 13.0(1885.4) | 15.9(60.0) | 19.7(6.0) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 15000(6804) | 18.0(5.5) | |
| 2 | 12120(5498) | 40.7 (12.4) | |
| 3 | 10168(4612) | 65.9(20.1) | |
| 4 | 8757(3972) | 86.9(26.5) |
| ITEM | HWN15000YD | HWN15000Y1D | HWN15000Y2D |
| Overall dimensions | 21.4″×10.0″×10.3″ | 21.4″×10.0″×11.3″ | 21.4″×10.0″×12..1″ |
| (L×W×H) | 544mm×255mm ×262mm | 544mm×255mm ×287mm | 544mm×255mm×308mm |
| Net weight (Ibs) | 132 | 132 | 132 |
| (kgs) | 60 | 60 | 60 |

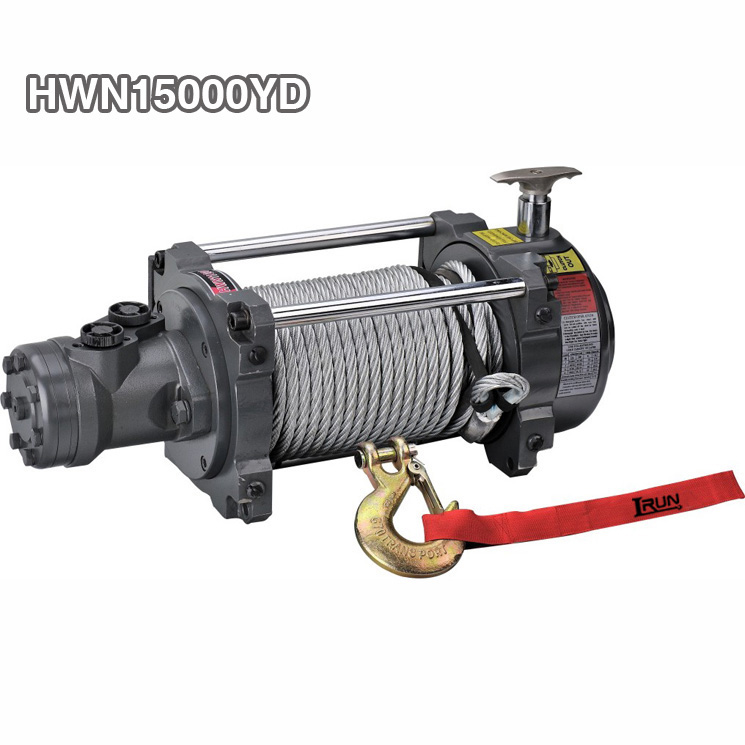

HWN15000YD

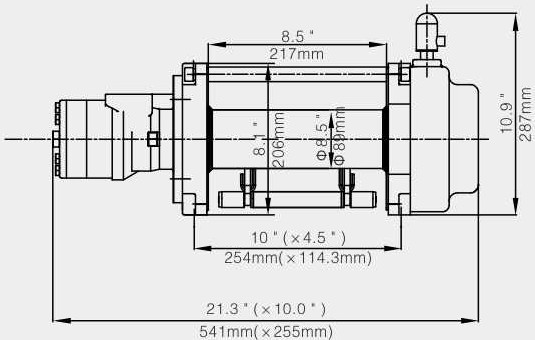

HWN15000Y1D

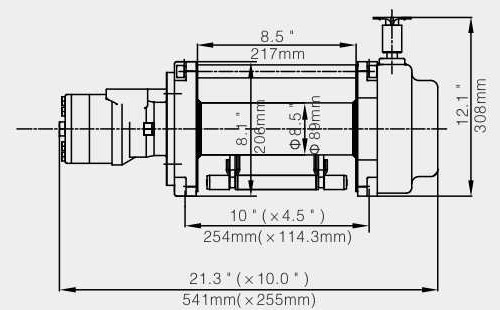

HWN15000Y2D
Our trailer /Industrail Winches is widely used in wreckers, trailers,
flat-plate haulage vehicles, engineering machineries, off-road
military vehicles and special vehicles.
