Model No.: EWX6000S
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

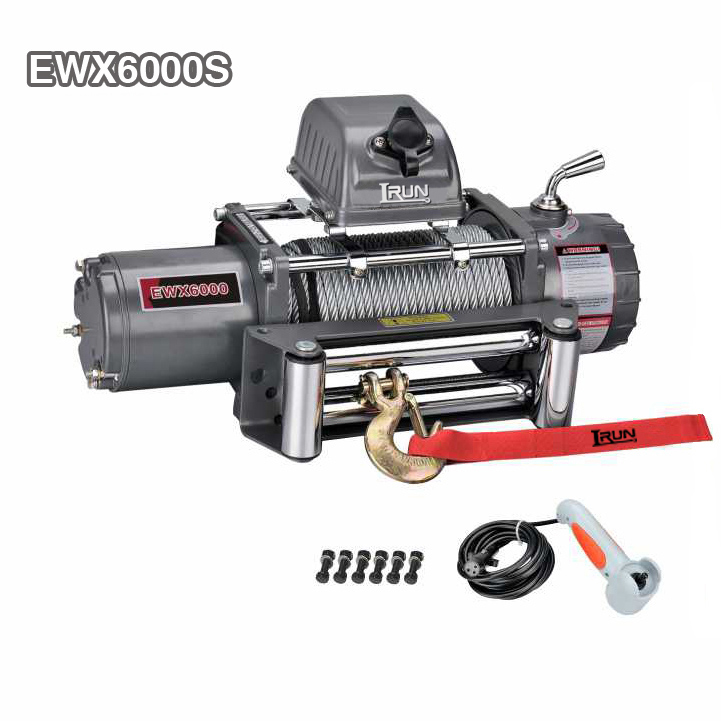

In the vast field of mechanical traction, Hydraulic Winches, with the magnificent momentum of hydraulic drive, writes the myth of power on the heavy engineering site. With its rock-solid structure, Industrial Winches has become a mainstay in industrial hoisting operations. Hydraulic 4wd Winches, with their all-terrain adaptability, freely gallop through muddy and dangerous shoals. And Item NO.EWX6000S, this 6000 lbs Electric Recovery Winch, deeply integrates the adventurous spirit of Offroad Winches with the professional rescue mission of Recovery Winches. Paired with practical Winch Accessories, it becomes a reliable partner for SUV and small car users.
The EWX6000S ingeniously ties the control box to the winch rod. This unique design not only saves space but also ensures convenient and efficient operation. When your SUV or small car encounters difficulties during outdoor adventures, whether it's stuck in soft sand or trapped on rough mountain roads, the EWX6000S can instantly transform into a valiant Off-Road Winches. Its powerful 6,000-pounds pull force acts as a reliable support, helping the vehicle easily overcome obstacles. If unfortunately in a desperate situation, it can quickly switch to the professional Recovery Winches mode. With stable and accurate pulling force output, it can steadily rescue the trapped vehicle from the dangerous situation and turn the crisis into a smooth path.
As a member of the EWX series, the EWX6000S perfectly inherits the outstanding advantages of this series, such as perfect efficiency, stable traction and compact design. Its independently patented designed three-stage planetary gear reducer is the crystallization of technology and craftsmanship. This innovative technology has greatly enhanced the transmission efficiency of the winch, ensuring efficient power transmission and providing a solid guarantee for safe operation. In small-scale Industrial scenarios, the EWX6000S can also work side by side with light Industrial Winches to efficiently complete tasks such as equipment transportation. Facing complex and changeable terrains, its performance is no less impressive than that of the Hydraulic 4Wd Winches, comprehensively enhancing the vehicle's passing ability.
In addition, the rich Winch Accessories complement the EWX6000S perfectly. High-strength and low-ductility synthetic fiber traction ropes can withstand huge tensile forces and are not prone to breakage, ensuring a safe and reliable traction process. The remote control with waterproof and dustproof functions supports long-distance operation and can accurately issue instructions even in bad weather. The sturdy and durable winch protective cover can effectively resist the impact of crushed stones and the erosion of wind and rain, providing all-round protection for the core components of the winch. Every accessory has been meticulously designed and strictly tested, working closely with the winch to ensure that the entire system can operate stably and efficiently under any extreme conditions. Choosing EWX6000S 6000 lbs Electric Recovery Winch means choosing a professional, reliable and efficient vehicle rescue solution, making every trip full of peace of mind and every challenge can be dealt with calmly.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Permanent magent motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available
9. SWR tensioner available
EWX6000
| SPECIFICATION | |
| Rated line pull | 6000 lbs (2722kgs) |
| Motor: Series Wound | 12V:Input: 2.8 kW / 3.7hp; Output: 1. 6 kW / 2.1hp |
| 24V:Input: 2.9kW / 3.9hp; Output: 1.7 kW / 2.3hp | |
| Gear reduction ratio | 280:1 |
| Cable (Dia.× L) | Ø9/32 “×105 ‘ (Ø7.2mm×32m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 6000(2722) | 22.0(6.7) | |
| 0 | 12.8(3.9) | 14.1 (4.3) | 45 | 30 | 2 | 4979(2258) | 47.9(14.6) |
| 2000(907) | 8.2 (2.5) | 8.8 (2.7) | 100 | 45 | 3 | 4255(1930) | 77.1(23.5) |
| 4000(1814) | 7.2 (2.2) | 7.9 (2.4) | 150 | 80 | 4 | 3714(1685) | 105.0(32.0) |
| 6000(2722) | 5.9 (1.8) | 6.9 (2.1) | 230 | 120 | |||
| ITEM | EWX6000U | EWX6000S | |
| Overall dimensions | 21.4″×6.3 “×10.0 “ | 20.8″×6.3 “×11.1 “ | |
| (L×W×H) | 544mm×160mm×254mm | 527mm×160mm×283mm | |
| Net weight (Ibs) | 66.1 | 67.2 | |
| (kgs) | 30.0 | 30.5 |

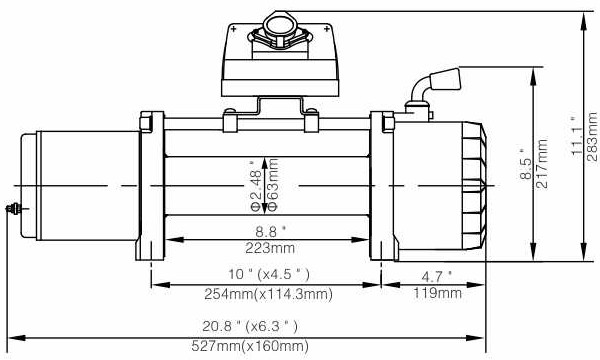

Overall Dimensions：20.8″ x 6.3″ x 11.1″
(L x W x H) 527mm x 160mm x 283mm
Net Weight：30.5 KGS
