Model No.: EWX8000S
Brand: OEM order acceptable
Place Of Origin: China
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

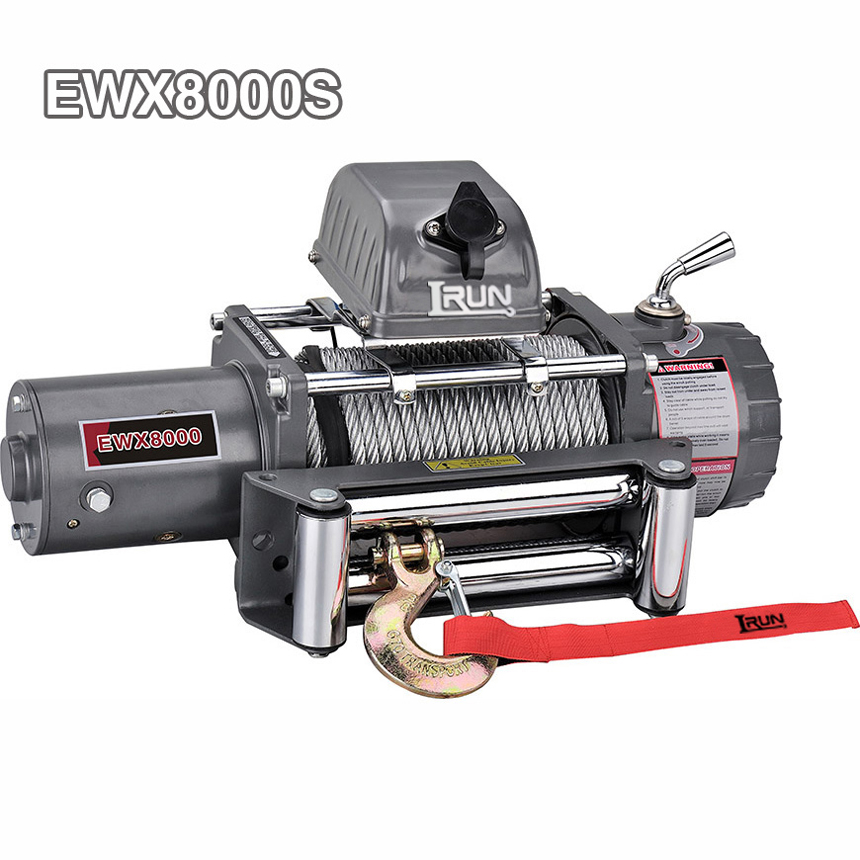

Item No. EWX8000S Jeep Winch 8000 Lb With its stunning performance and innovative design, it has become the trusted choice of many Jeep owners. Paired with a full range of Winch Accessories, it provides all-round protection for off-road trips.
The EWX8000S ingeniously ties the control box to the winch rod. This design not only saves space but also ensures convenient and efficient operation. When Jeep ventures into the uninhabited wilderness, whether it's climbing steep rocky mountain roads or traversing swamps with undercurrents, the EWX8000S immediately transforms into a fearless Off-Road Winches. With a powerful pulling force of 8,000 pounds, it is like endowing Jeep with a pair of steel arms, easily dragging the vehicle over obstacles and advancing towards the unknown secret realm. When the vehicle accidentally gets into trouble, it can quickly switch to the professional Recovery Winches. With precise and stable pulling force output, it can steadily rescue the trapped Jeep from the mud and sand, ensuring that every crisis can be turned into safety.
As a representative product of the EWX series in the 8,000-pound class, the EWX8000S features perfect efficiency, stable traction performance and a compact design. Its independently patented designed three-stage planetary gear reducer has pushed the transmission efficiency of the winch to the extreme, ensuring safe and reliable operation even under high-intensity use. This exquisite craftsmanship enables it not only to perform outstandingly in off-road rescue but also to compete with light Industrial Winches in small industrial scenarios, undertaking tasks such as equipment transportation and short-distance towing. Facing complex terrains, its performance is no less than that of the Hydraulic 4wd Winches, further enhancing Jeep's all-terrain adaptability.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX8000S
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: permanent magnet | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |
Overall Dimensions：21.3″ x 6.3″ x 10.7″
(L x W x H) 540mm x 160mm x 283mm
Net Weight：35.1 KGS
