Model No.: EWX6000S
Brand: OEM ORDER ACCEPTABLE
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

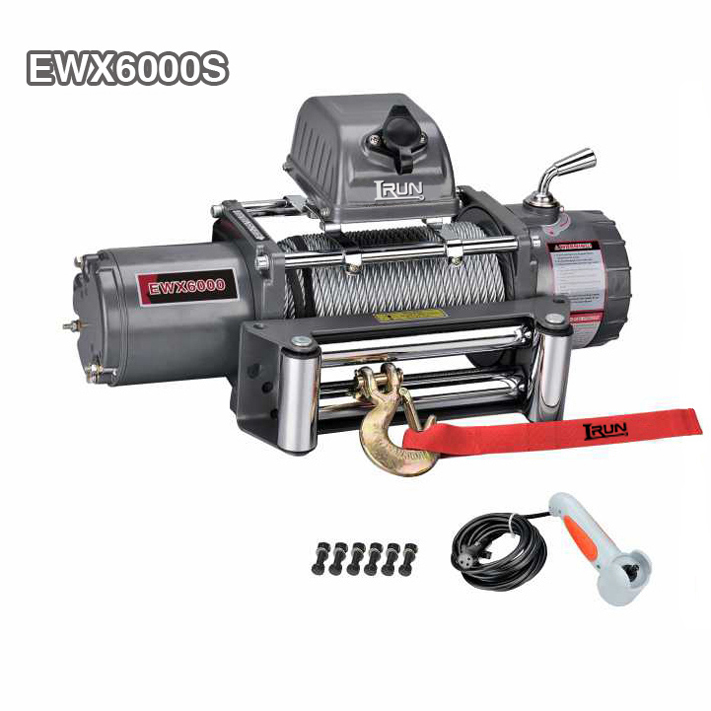

EWX6000S
6000 lbs Electric Jeep Winch with a control box tied on winch bar Item NO. EWX6000S . It’s a great option on high performance 6000 pounds electric Jeep Winch for Suv or Small Car .It comes with winch EWX Series’ advantages perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Permanent magent motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available
9. SWR tensioner available
EWX6000
| SPECIFICATION | |
| Rated line pull | 6000 lbs (2722kgs) |
| Motor: Series Wound | 12V:Input: 2.8 kW / 3.7hp; Output: 1. 6 kW / 2.1hp |
| 24V:Input: 2.9kW / 3.9hp; Output: 1.7 kW / 2.3hp | |
| Gear reduction ratio | 280:1 |
| Cable (Dia.× L) | Ø9/32 “×105 ‘ (Ø7.2mm×32m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 6000(2722) | 22.0(6.7) | |
| 0 | 12.8(3.9) | 14.1 (4.3) | 45 | 30 | 2 | 4979(2258) | 47.9(14.6) |
| 2000(907) | 8.2 (2.5) | 8.8 (2.7) | 100 | 45 | 3 | 4255(1930) | 77.1(23.5) |
| 4000(1814) | 7.2 (2.2) | 7.9 (2.4) | 150 | 80 | 4 | 3714(1685) | 105.0(32.0) |
| 6000(2722) | 5.9 (1.8) | 6.9 (2.1) | 230 | 120 | |||
| ITEM | EWX6000U | EWX6000S | |
| Overall dimensions | 21.4″×6.3 “×10.0 “ | 20.8″×6.3 “×11.1 “ | |
| (L×W×H) | 544mm×160mm×254mm | 527mm×160mm×283mm | |
| Net weight (Ibs) | 66.1 | 67.2 | |
| (kgs) | 30.0 | 30.5 |
Overall Dimensions：20.8″ x 6.3″ x 11.1″
(L x W x H) 527mm x 160mm x 283mm
Net Weight：30.5 KGS
