Model No.: HWN15000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Auto
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

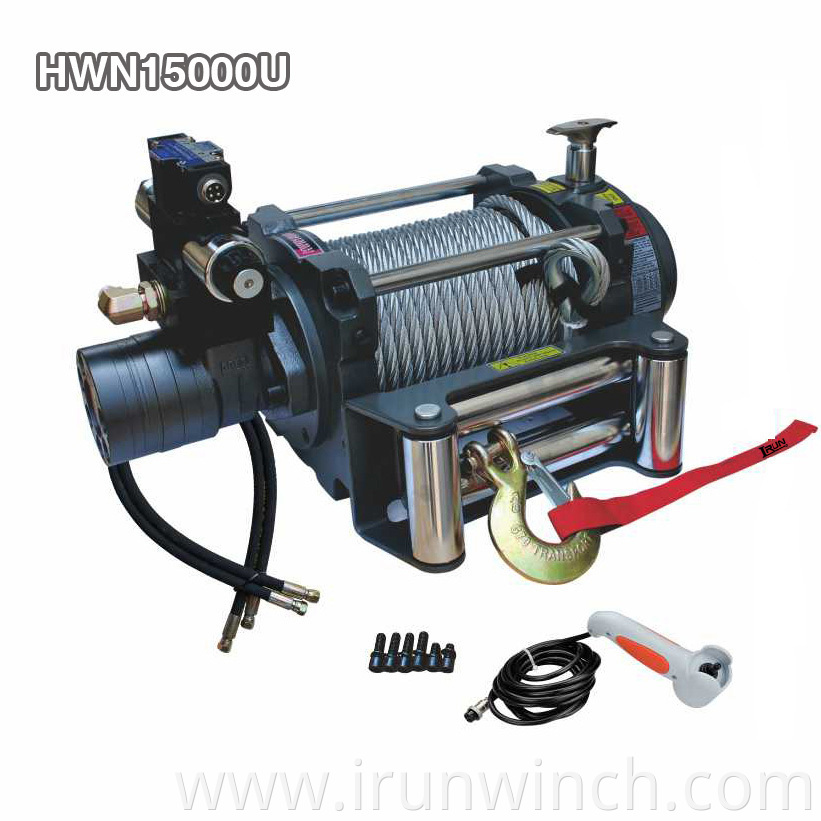

Heavy Duty Hydraulic Winch 15000 lb Item NO. HWN15000U
The winch has 15000 lb pulling capacity.
The winch is equipped with a Heavy duty automatic bracking action for safe operation,and a patent hardened steel two stage planetar gear reducer provides high efficient transmisson. Each winch come along with wire rope,roller failread and Winch Accessoires.
Features:
1. Free spooling clutch: Manual, Air cluch or Manual and Air
2. Automatic screw cone braking action
3. Specially designed differential gearing for heavy duty
4. Specially designed shape for convenience of installation and good looking
5. For engineering use available
6. DC 12V or DC 24V Power drive optional
7. SWR tensioner available
8. Can not use it working as lift
H HWN15000U
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804kgs) |
| Motor: permanent magnet | 80ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 13Mpa |
| Gear reduction ratio | 33.4:1 |
| Cable (Dia.× L) | Ø15/32 “×87 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø3.5″×8. 5″ (Ø89mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 1.6 (0.5) |
| 5000(2268) | 4.3(623.7) | 2.6(10.0) | 3.3(1.0) |
| 10000(4536) | 8.7(1261.8) | 5.3(20.0) | 6.6(2.0) |
| 12000(5443) | 10.0(1450.3) | 7.9(30.0) | 9.8(3.0) |
| 15000(6804) | 13.0(1885.4) | 15.9(60.0) | 19.7(6.0) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 15000(6804) | 18.0 (5.5) | |
| 2 | 12120(5498) | 40.7(12.4) | |
| 3 | 10168(4612) | 65.9(20.1) | |
| 4 | 8757(3972) | 86.9(26.5) |
| ITEM | HWN15000A | HWN15000U | |
| Overall dimensions | 21.5″×8.9″×10.3″ | 21.5″×8.9″×11.5″ | |
| (L×W×H) | 547mm×226mm 262mm | 547mm×226mm×292mm | |
| Net weight (Ibs) | 151.5 | 152 | |
| (kgs) | 68.5 | 68.8 |
Overall Dimensions 21.0″ x 8.9″ x 11.5″
(L x W x H) 534mm x 226mm x 292mm
Net Weight 68.8 KGS
