Model No.: HWN12000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Hydraulic
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

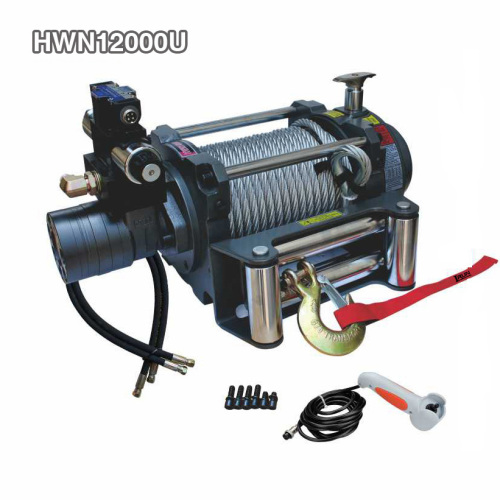

12000 lb Hydraulic Towing Winch. Item No. HWN12000U
The Winch has a rated line pull of 12000 lbs.
The winch is equipped with a Heavy duty automatic bracking action for safe operation,and a patented hardened steel two stage planetary gear reducer provides high efficient transmisson. Each winch come along with a seperated electric valve, a wire rope with hook,a roller failread and a set of Hydraulic Accessories.
Features:
1. Free spooling clutch: Manual, Air cluch or Manual and Air
2. Automatic screw cone braking action
3. Specially designed differential gearing for heavy duty
4. Specially designed shape for convenience of installation and good looking
5. For engineering use available
6. DC 12V or DC 24V Power drive optional
7. SWR tensioner available
8. Can not use it working as lift
HWN12000U
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 14Mpa |
| Gear reduction ratio | 25.5:1 |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8″×8. 6″ (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 2.3 (0.7) |
| 3000(1361) | 3.4(453.1) | 2.6(10.0) | 4.6(1.4) |
| 6000(2722) | 6.8(986.2) | 5.3(20.0) | 8.9(2.7) |
| 10000(4536) | 11.5(1668.0) | 9.2(35.0) | 15.1(4.6) |
| 12000(5443) | 14.0(2030.6) | 10.6(40.0) | 17.4(5.3) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 12000(5443) | 16.4 (5.0) | |
| 2 | 10595(4806) | 37.2(11.3) | |
| 3 | 9485(4302) | 60.9(18.6) | |
| 4 | 7904(3585) | 83.7(25.5) |
| ITEM | HWN12000A | HWN12000U | |
| Overall dimensions | 20.7″×8.1″×9.7″ | 20.7″×8.1″×11.1″ | |
| (L×W×H) | 525mm×206mm×246mm | 525mm×206mm×282mm | |
| Net weight (Ibs) | 139.0 | 139.3 | |
| (kgs) | 63.0 | 63.2 |
Overall Dimensions 20.7″ x 8.1″ x 11.1″
(L x W x H) 525mm x 206mm x 282mm
Net Weight 63.2 KGS
