Model No.: EWN17500U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

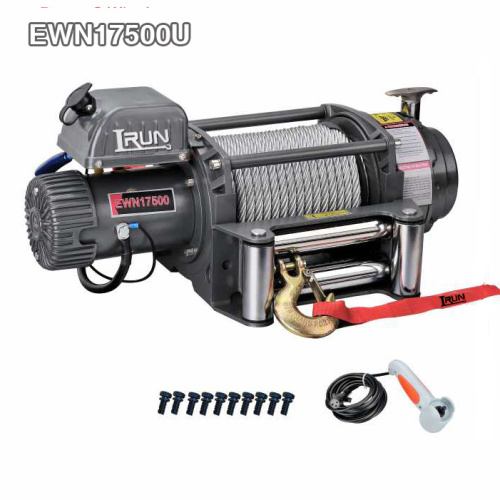

Heavy Duty Electric Winch 17500lb Item No.EWN17500U, which comes with a patent design three stage planetary gear reducer
and the winching Capacity of up to 17500lbs.
Each winch come along with a control box, a wire rope with hook,a roller failread accessories
This winch is equipped with a Heavy duty automatic screw cone braking action for a safe operation,and a patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmisson.
EWN17500 as the classic model of our heavy duty winch EWN Series be of a more durable working life, faster line speed and better efficient transmission .They’re widely applied for severe offroad or engineering use.
Features:
1.) Full steel reducer gear
2.) Pull and turn free spooling clutch
3.) Automatic screw cone braking action
4.) Heavy duty design
5.) Standard 4-way roller fairlead
6.) Clevis pinned/latched hook
7.)Series wound motor
8.) Patent design three stage planetary gear reducer
9.) Specially designed shape for convence of installation and good looking
10.)Remote control through control box and switch
11.) DC 12V or DC 24V Power drive optional
12.) Wireless remote optional
Rated line pull 17500 lbs(7938 kgs)
Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp
24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp
Gear reduction ratio 430:1
Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)
Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)
Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12
Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)
Net weight Ibs (kgs) 148.4(67.3)
EWN17500
| SPECIFICATION | |
| Rated line pull | 17500 lbs (7938 kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp 24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp |
| Gear reduction ratio | 430:1 |
| Cable (Dia.× L) | Ø15/32 “×87 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8. 6” (Ø89mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 10 “×6.5 ” (254mm×165.1mm) 8-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 17500(7938) | 18.0(6.0) | |
| 0 | 19.7(6.0) | 13.8(4.4) | 100 | 40 | 2 | 14140(6414) | 40.7(13.0) |
| 6000(2722) | 7.2(2.2) | 6.9(2.1) | 220 | 100 | 3 | 11862(5381) | 65.9(21.0) |
| 10000(4536) | 5.6(1.7) | 5.9(1.8) | 320 | 140 | 4 | 10217(4634) | 86.9(26.5) |
| 12500(5670) | 4.9(1.5) | 5.2(1.6) | 350 | 180 | |||
| 14000(6350) | 4.6(1.4) | 4.6(1.4) | 380 | 200 | |||
| 17500(7938) | 3.0(0.9) | 3.9(1.2) | 450 | 250 | |||
| ITEM | EWN17500U | EWN17500S | |
| Overall dimensions | 24.4″×8.4″×11.4″ 620mm×214mm×290mm | 24.4″×8.4″×12.6″ 620mm×214mm×321mm | |
| (L×W×H) | |||
| Net weight (Ibs) | 147.7 67.0 | 148.4 67.3 | |
| (kgs) |
Overall Dimensions 24.4″ x 8.4″ x 11.4″
(L x W x H) 620mm x 214mm x 290mm
Net Weight 67.0 KGS
